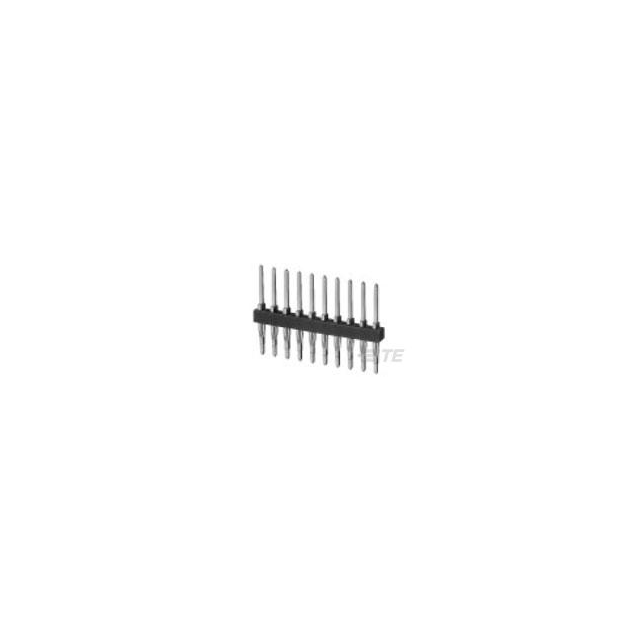

215267-8

Manufacturer :

TE Connectivity

Product Category :

Unclassified

Body Orientation :

Straight

Packaging :

Box

Terminal Pitch :

2.54 mm

Termination Type :

Press Fit

Product Status :

Active

Rated Current (Signal) :

3 A

Body Breadth :

0.1 inch

Contact Gender :

Male

Total Number of Contacts :

8

Insulator Color :

Green

Mounting Type :

BOARD

Dielectric Withstanding Voltage :

750VAC V

Connector Type :

BOARD CONNECTOR

Gender :

HDR

JESD-609 Code :

e3

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Pitch (mm) :

2.54(mm)

Contact Pattern :

RECTANGULAR

Product Depth (mm) :

2.54(mm)

Contact Style :

SQ PIN-SKT

Plating Thickness :

30u inch

Additional Feature :

ACTION PIN

Option :

GENERAL PURPOSE

Number Of PCB Rows :

1

IEC Conformance :

No

Current Rating (Max) :

3/Contact(A)

Mounting Style :

Straight

Body Depth :

0.114 inch

Housing Color :

Green

Contact Finish Termination :

Tin

Number of Contact Rows :

1

Number of Contacts :

8(POS)

Terminal Length :

0.146 inch

Product Height (mm) :

9.9(mm)

Housing Material :

Polyester

MIL Conformance :

No

HTS Code :

8536.69.40.40

Reliability :

COMMERCIAL

Pbfree Code :

yes

Series :

*

Body/Shell Style :

Receptacle

ECCN Code :

EAR99

Mating Contact Pitch :

0.1 inch

Reach Compliance Code :

Compliant

Insulation Resistance :

5000000000 Ω

Operating Temp Range :

-65C to 105C

Package :

Box

Brand Name :

AMP

DIN Conformance :

No

Contact Plating :

Gold Over Nickel

Reference Standard :

UL, CSA

Termination Method :

Press Fit

Type :

Unshrouded Header

Contact Material :

Phosphor Bronze
