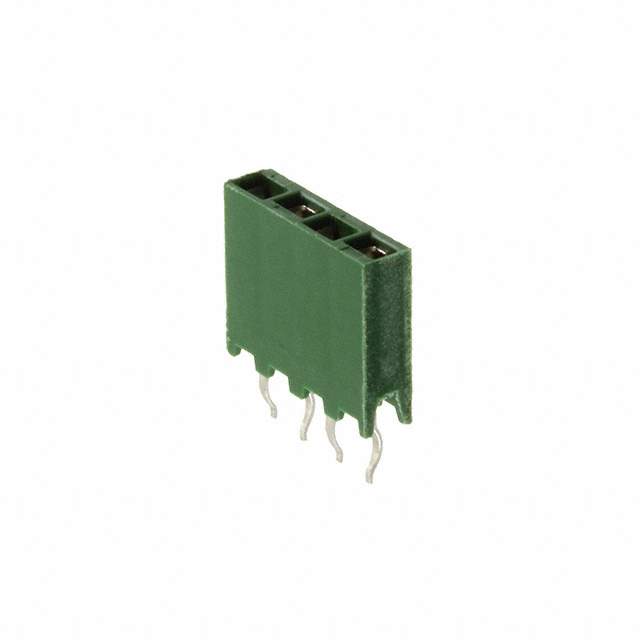

215299-4
Or copy the link below:
- Mfr.Part #
- 215299-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS 0.1 GOLD PCB
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Pbfree Code :
- yes
- Contact Resistance :
- 12mOhm
- Contact Material :
- Phosphor Bronze
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Insulation Color :
- Green
- PCB Mount Retention :
- With
- JESD-609 Code :
- e3
- Stackable :
- yes
- PCB Thickness :
- 1.6mm
- Style :
- Board to Board
- Insulation Material :
- Polyester, Glass Filled
- Contact Finish - Mating :
- Gold
- IEC Conformance :
- No
- Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Pitch - Mating :
- 0.100 2.54mm
- Contact Type :
- Female Socket
- Length - Tail :
- 3.1mm
- Contact Current Rating :
- 3A
- Fastening Type :
- Push-Pull
- Contact Plating :
- Tin, Gold
- Number of Positions :
- 4
- Option :
- GENERAL PURPOSE
- Min Operating Temperature :
- -55°C
- Mixed Contacts :
- No
- Lead Free :
- Lead Free
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Termination :
- Kinked Pin, Solder
- Contact Finish - Post :
- Tin
- Filter Feature :
- No
- Connector Type :
- Receptacle
- Sealable :
- No
- Mount :
- Through Hole
- ELV :
- Compliant
- Series :
- AMPMODU HV-100
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 31 Weeks
- Depth :
- 2.52mm
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Lead Length :
- 3.1mm
- Contact Shape :
- Square
- Height :
- 8.5mm
- Housing Color :
- Black, Green
- DIN Conformance :
- No
- MIL Conformance :
- No
- Contact Length - Post :
- 0.122 3.10mm
- Number of Positions Loaded :
- All
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 4μm
- Published :
- 2009
- Packaging :
- Tray
- Length :
- 10.16mm
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyester
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Insulation Height :
- 0.335 8.51mm
- Max Operating Temperature :
- 105°C
- Datasheets
- 215299-4
1 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Gold Polyester, Glass Filled 4 Positions Female Socket
215299-4 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the AMPMODU HV-100 Series.Use it when the temperature is below 105°C.Temperatures below -55°C are required for this device to operate.It is mounted by Through Hole.
215299-4 Features
AMPMODU HV-100 series
215299-4 Applications
There are a lot of TE Connectivity AMP Connectors
215299-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
