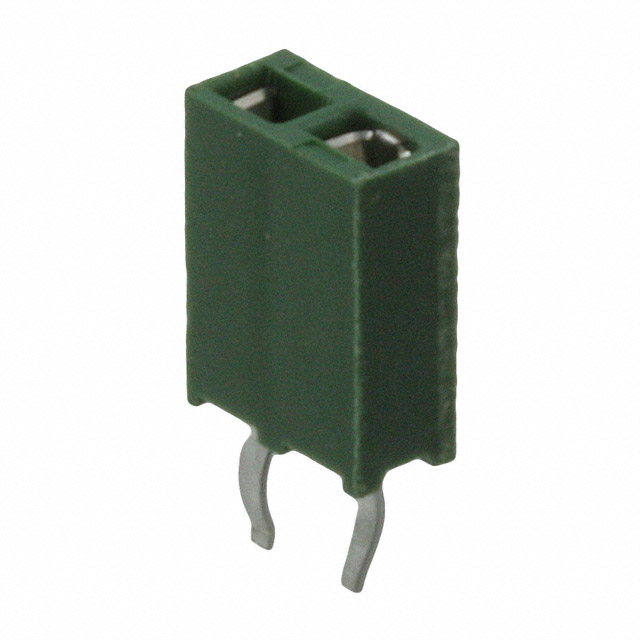

215297-2
Or copy the link below:
- Mfr.Part #
- 215297-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 2POS 0.1 GOLD PCB
- Stock
- 12,037
- In Stock ：
- 12,037
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Number Of PCB Rows :
- 1
- Insulation Resistance :
- 5000000000Ohm
- Mount :
- Through Hole
- ELV :
- Compliant
- Option :
- GENERAL PURPOSE
- Number of Positions Loaded :
- All
- Contact Current Rating :
- 3A
- Length :
- 5.08mm
- Reference Standard :
- UL, CSA
- Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Sealable :
- No
- Insulation Color :
- Green
- PCB Contact Pattern :
- RECTANGULAR
- UL Flammability Code :
- 94V-0
- Min Operating Temperature :
- -55°C
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e3
- Additional Feature :
- Top Entry
- Published :
- 2005
- Insulation Height :
- 0.276 7.00mm
- Number of Positions :
- 2
- Number of Rows :
- 1
- Depth :
- 2.52mm
- Reliability :
- COMMERCIAL
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Number of Conductors :
- ONE
- Packaging :
- Tray
- Body Breadth :
- 0.099 inch
- RoHS Status :
- RoHS Compliant
- Lead Length :
- 3.1mm
- Contact Plating :
- Gold, Tin
- Height :
- 7mm
- Mounting Type :
- Through Hole
- HTS Code :
- 8536.69.40.40
- Contact Type :
- Female Socket
- Rated Current (Signal) :
- 3A
- Contact Gender :
- FEMALE
- PCB Thickness :
- 1.6mm
- Current Rating :
- 3A
- Material Flammability Rating :
- UL94 V-0
- Length - Tail :
- 3.1mm
- Housing Color :
- Black
- Contact Resistance :
- 12mOhm
- Pbfree Code :
- yes
- Insulation Material :
- Polyester, Glass Filled
- Voltage - Rated :
- 250V
- Style :
- Board to Board
- Stackable :
- yes
- DIN Conformance :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Connector Type :
- Receptacle
- Contact Finish - Post :
- Tin
- Housing Material :
- Polyester
- Max Operating Temperature :
- 105°C
- Fastening Type :
- Push-Pull
- Contact Material :
- Phosphor Bronze
- Contact Shape :
- Square
- Termination :
- Kinked Pin, Solder
- Mixed Contacts :
- No
- REACH SVHC :
- No SVHC
- Contact Finish - Mating :
- Gold
- Series :
- AMPMODU HV-100
- Filter Feature :
- No
- Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Contact Length - Post :
- 0.122 3.10mm
- MIL Conformance :
- No
- Factory Lead Time :
- 31 Weeks
- IEC Conformance :
- No
- PCB Mount Retention :
- With
- Datasheets
- 215297-2
1 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Gold Polyester, Glass Filled 2 Positions Female Socket
215297-2 Overview
It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the AMPMODU HV-100 Series of products.In addition, there are other features such as TOP ENTRY, to mention only a few.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -55°C.The part is mounted by Through Hole.
215297-2 Features
AMPMODU HV-100 series
215297-2 Applications
There are a lot of TE Connectivity AMP Connectors
215297-2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
