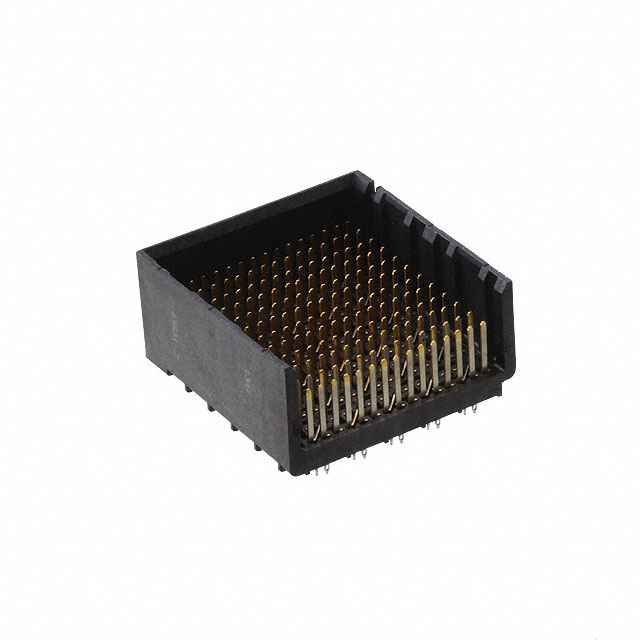

2143631-2
Or copy the link below:
- Mfr.Part #
- 2143631-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 180POS PCB
- Stock
- 9,081
- In Stock ：
- 9,081
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Series :
- Impact
- Contact Finish :
- Gold
- Connector Type :
- Receptacle, Female Sockets
- Number of Ground Positions :
- 60
- Mounting Type :
- Through Hole
- Number of Pairs :
- 60
- Number of Positions :
- 180
- Length :
- 25.6mm
- Packaging :
- Tube
- Housing Color :
- Black
- Width :
- 24.7904mm
- Impedance :
- 100Ohm
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 30V
- Voltage - Rated :
- 30V
- Termination :
- Press-Fit
- PCB Mounting Orientation :
- Vertical
- Underplate Material :
- Nickel
- Contact Current Rating :
- 750mA
- Shrouding :
- Partially Shrouded
- Min Operating Temperature :
- -67°C
- Max Current Rating :
- 750mA
- Data Rate :
- 25 Gbps
- Pitch :
- 1.905mm
- Connector Style :
- Impact
- Circuit Application :
- Signal
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Max Operating Temperature :
- 185°C
- Row Spacing :
- 1.15 mm
- Color :
- Black
- Operating Temperature :
- -55°C~ 85°C
- Housing Material :
- Polymer
- Plating Thickness :
- 760 nm
- Number of Columns :
- 12
- Number of Rows :
- 15
- Differential Signaling :
- yes
- Orientation :
- Vertical
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Differential Pairs per Column :
- 5
- Length - Tail :
- 1.4mm
- Mating Alignment :
- With
- Contact Style :
- Press-Fit
- Factory Lead Time :
- 19 Weeks
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Signal Positions :
- 120
- Stackable :
- No
- Sealable :
- No
- Material Flammability Rating :
- UL94 V-0
- Height :
- 11.95mm
- Current Rating (Amps) :
- 0.75A
- Number of Contacts :
- 180
- Hole Diameter :
- 457.2 µm
- RoHS Status :
- Non-RoHS Compliant
- Make First / Break Last :
- No
- Published :
- 2014
- Current Rating :
- 750mA
- Contact Plating :
- Gold, Tin
- PCB Thickness :
- 3mm
- Number of Positions Loaded :
- All
- Datasheets
- 2143631-2
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 180 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2143631-2 Overview
The product comes in a package of Receptacle, Female Sockets.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Impact Series.Use it when the temperature is below 185°C.Temperatures below -67°C are required for this device to operate.It operates at an operating temperature of -55°C~ 85°C.As long as the supply voltage is 30V, this Backplane Connector is functional.
2143631-2 Features
Impact series
2143631-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143631-2 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
