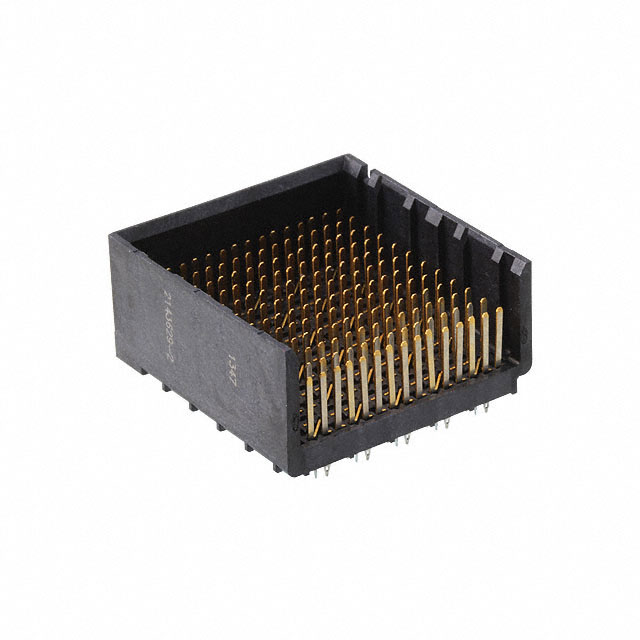

2143629-2
Or copy the link below:
- Mfr.Part #
- 2143629-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 180POS PCB
- Stock
- 18,136
- In Stock ：
- 18,136
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Current Rating :
- 750mA
- Sealable :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 180
- Termination :
- Press-Fit
- Data Rate :
- 25 Gbps
- Min Operating Temperature :
- -67°C
- Operating Temperature :
- -55°C~ 85°C
- Plating Thickness :
- 760 nm
- Length - Tail :
- 1.4mm
- Number of Ground Positions :
- 60
- Pitch :
- 1.905mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Underplate Material :
- Nickel
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Number of Rows :
- 15
- Height :
- 11.95mm
- Connector Type :
- Header, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 750mA
- Contact Current Rating :
- 750mA
- Housing Material :
- Polymer
- Stackable :
- No
- Differential Signaling :
- yes
- Differential Pairs per Column :
- 5
- Number of Signal Positions :
- 120
- Series :
- Impact
- Shrouding :
- Partially Shrouded
- Voltage - Rated :
- 30V
- Number of Positions Loaded :
- All
- Hole Diameter :
- 381 µm
- Flammability Rating :
- UL94 V-0
- Connector Style :
- Impact
- Current Rating (Amps) :
- 0.75A
- Number of Columns :
- 12
- Mating Alignment :
- With
- Make First / Break Last :
- No
- Row Spacing :
- 1.15 mm
- Contact Style :
- Press-Fit
- PCB Mounting Orientation :
- Vertical
- Housing Color :
- Black
- Number of Positions :
- 180
- Max Operating Temperature :
- 185°C
- PCB Thickness :
- 3mm
- ELV :
- Compliant
- Color :
- Black
- Impedance :
- 100Ohm
- Packaging :
- Tube
- Circuit Application :
- Signal
- Operating Supply Voltage :
- 30V
- Contact Plating :
- Gold, Tin
- Number of Pairs :
- 60
- Length :
- 25.6mm
- Width :
- 24.7904mm
- Factory Lead Time :
- 14 Weeks
- Contact Finish :
- Gold
- Published :
- 2014
- Datasheets
- 2143629-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 180 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2143629-2 Overview
The packaging is Header, Male Pins.Mounting type is Through Hole.To package the product, we use a Tube case.This product is from the Impact Series.It is best used at temperatures below 185°C.-67°C is the minimum temperature this device can operate at.Device runs at -55°C~ 85°C Operating Temperature.This Backplane Connector works with a 30V supply voltage.
