2143623-1
Or copy the link below:
- Mfr.Part #
- 2143623-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 15POS PCB
- Stock
- 45,397
- In Stock ：
- 45,397
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Positions Loaded :
- All
- Length :
- 17.5006mm
- Number of Columns :
- 8
- Max Current Rating :
- 750mA
- Differential Pairs per Column :
- 5
- Min Operating Temperature :
- -67°C
- PCB Mounting Orientation :
- Vertical
- Voltage - Rated :
- 30V
- Operating Supply Voltage :
- 30V
- Number of Pairs :
- 40
- Orientation :
- Vertical
- Connector Type :
- Header, Male Pins
- Flammability Rating :
- UL94 V-0
- Contact Style :
- Press-Fit
- Number of Signal Positions :
- 80
- Contact Plating :
- Gold, Tin
- Impedance :
- 100Ohm
- Row Spacing :
- 1.15 mm
- Differential Signaling :
- yes
- Underplate Material :
- Nickel
- Sealable :
- No
- Length - Tail :
- 1.4mm
- Plating Thickness :
- 760 nm
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Black
- Hole Diameter :
- 457.2 µm
- Published :
- 2014
- Mating Alignment :
- With
- Connector Style :
- Impact
- Number of Contacts :
- 120
- Housing Material :
- Polymer
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Max Operating Temperature :
- 185°C
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 1.905mm
- Contact Current Rating :
- 750mA
- Number of Positions :
- 15
- Packaging :
- Tube
- Data Rate :
- 25 Gbps
- Width :
- 24.7904mm
- Operating Temperature :
- -55°C~ 85°C
- Contact Finish :
- Gold
- Series :
- Impact
- Factory Lead Time :
- 14 Weeks
- Number of Ground Positions :
- 40
- Height :
- 11.95mm
- Current Rating (Amps) :
- 0.75A
- Termination :
- Press-Fit
- Circuit Application :
- Signal
- Number of Rows :
- 15
- Stackable :
- No
- Shrouding :
- Partially Shrouded
- Make First / Break Last :
- No
- RoHS Status :
- Non-RoHS Compliant
- PCB Thickness :
- 3mm
- Mounting Type :
- Through Hole
- Current Rating :
- 750mA
- Datasheets
- 2143623-1

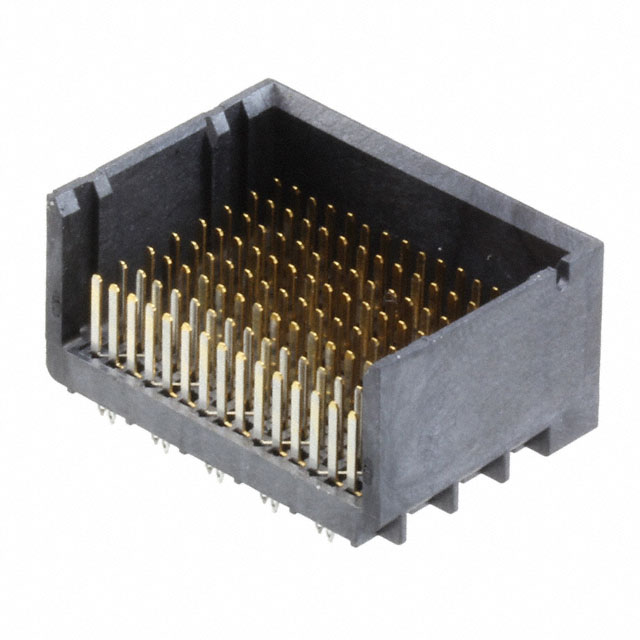

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 15 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2143623-1 Overview
The packaging contains Header, Male Pins.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Impact belongs to the Impact Series.Whenever the temperature is below 185°C, it's best.There is a minimum temperature requirement of [0°C] for this device.This device operates at a temperature of -55°C~ 85°C.When the supply voltage is set to 30V, this Backplane Connector will work.
