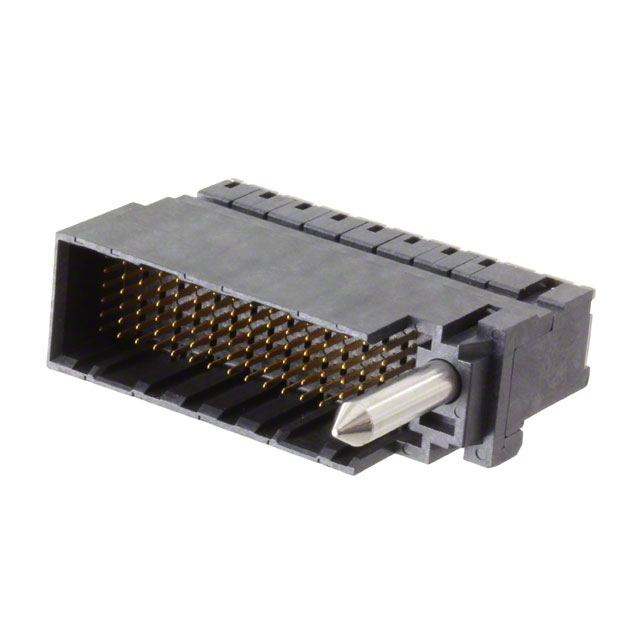

2143316-2
Or copy the link below:
- Mfr.Part #
- 2143316-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 96POS EDGE MNT
- Stock
- 1,667
- In Stock ：
- 1,667
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Mount :
- Through Hole
- Gender :
- Male
- Min Operating Temperature :
- -67°C
- Connector Type :
- Receptacle, Female Sockets
- Stackable :
- No
- Number of Positions Loaded :
- All
- Length - Tail :
- 1.2mm
- Termination :
- Press-Fit
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Depth :
- 24.65mm
- Flammability Rating :
- UL94 V-0
- Row Spacing :
- 1.35 mm
- Contact Finish :
- Gold
- Connector Style :
- Impact, Guide Right
- Series :
- Impact
- Differential Pairs per Column :
- 2
- Make First / Break Last :
- No
- PCB Mounting Orientation :
- RIGHT ANGLE
- Plating Thickness :
- 1.27μm
- Number of Rows :
- 6
- Number of Ground Positions :
- 32
- Length :
- 38mm
- Number of Columns :
- 16
- Housing Material :
- Polymer
- Number of Signal Positions :
- 64
- Current Rating (Amps) :
- 0.75A
- Contact Material :
- Copper, Nickel
- Contact Style :
- Press-Fit
- Hole Diameter :
- 381 µm
- Number of Pairs :
- 32
- Voltage - Rated :
- 30V
- Max Voltage Rating (AC) :
- 120V
- Height :
- 9.7mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Pitch :
- 1.905mm
- Color :
- Black
- Differential Signaling :
- yes
- Width :
- 33.3mm
- Orientation :
- RIGHT ANGLE
- Underplate Material :
- Nickel
- Published :
- 2014
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 750mA
- PCB Thickness :
- 1.6mm
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~ 85°C
- Impedance :
- 100Ohm
- Packaging :
- Tube
- Data Rate :
- 25 Gbps
- Factory Lead Time :
- 14 Weeks
- Housing Color :
- Black
- ELV :
- Compliant
- Max Operating Temperature :
- 185°C
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 96
- Contact Plating :
- Gold, Tin
- Datasheets
- 2143316-2
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 96 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143316-2 Overview
The product comes in a package of Receptacle, Female Sockets.Board Edge, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Impact Series.Use it when the temperature is below 185°C.Temperatures below -67°C are required for this device to operate.It is mounted by Through Hole.It operates at an operating temperature of -55°C~ 85°C.
2143316-2 Features
Impact series
2143316-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143316-2 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
