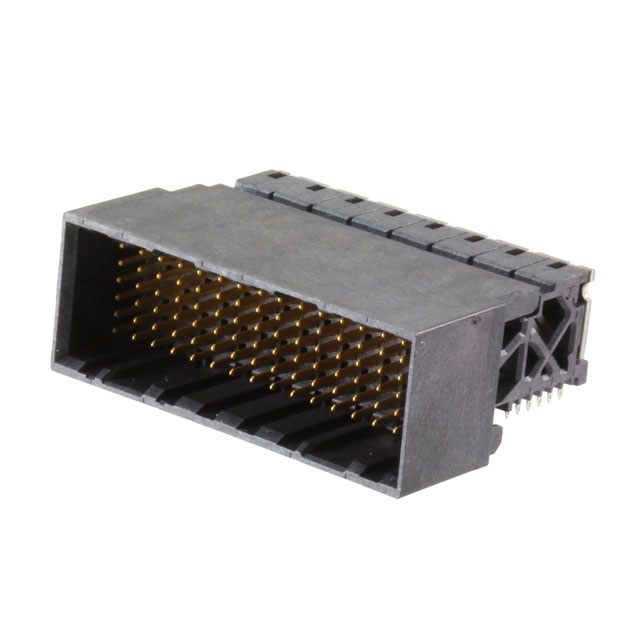

2143311-2
Or copy the link below:
- Mfr.Part #
- 2143311-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 96POS EDGE MNT
- Stock
- 33,923
- In Stock ：
- 33,923
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Positions :
- 96
- Connector Type :
- Header, Male Pins
- Impedance :
- 100Ohm
- Differential Signaling :
- yes
- Make First / Break Last :
- No
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Rows :
- 6
- Housing Material :
- Polymer
- Contact Style :
- Press-Fit
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Signal Positions :
- 64
- Height :
- 9.7mm
- Contact Plating :
- Gold, Tin
- Width :
- 24.6126mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Data Rate :
- 25 Gbps
- ELV :
- Compliant
- Number of Pairs :
- 32
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 15 Weeks
- Operating Temperature :
- -55°C~ 85°C
- Color :
- Black
- Orientation :
- RIGHT ANGLE
- Published :
- 2011
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- PCB Thickness :
- 1.6mm
- Number of Columns :
- 16
- Series :
- Impact
- Voltage - Rated :
- 30V
- Hole Diameter :
- 381 µm
- Stackable :
- No
- Min Operating Temperature :
- -67°C
- Number of Ground Positions :
- 32
- Contact Current Rating :
- 750mA
- Plating Thickness :
- 1.27μm
- Contact Material :
- Copper, Nickel
- Connector Style :
- Impact
- Max Operating Temperature :
- 185°C
- Length :
- 30.4mm
- RoHS Status :
- RoHS Compliant
- Row Spacing :
- 1.35 mm
- Termination :
- Press-Fit
- Pitch :
- 1.905mm
- Differential Pairs per Column :
- 2
- Packaging :
- Tube
- Underplate Material :
- Nickel
- Contact Finish :
- Gold
- Housing Color :
- Black
- Current Rating (Amps) :
- 0.75A
- Length - Tail :
- 1.2mm
- Datasheets
- 2143311-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 96 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143311-2 Overview
Packaging for this item is Header, Male Pins.There is a mounting type of Board Edge, Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Impact Series.You should use it when it's below 185°C.A minimum temperature of -67°C is required for the operation of this device.In this case, the device operates at -55°C~ 85°C Operating Temperature.
2143311-2 Features
Impact series
2143311-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143311-2 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
