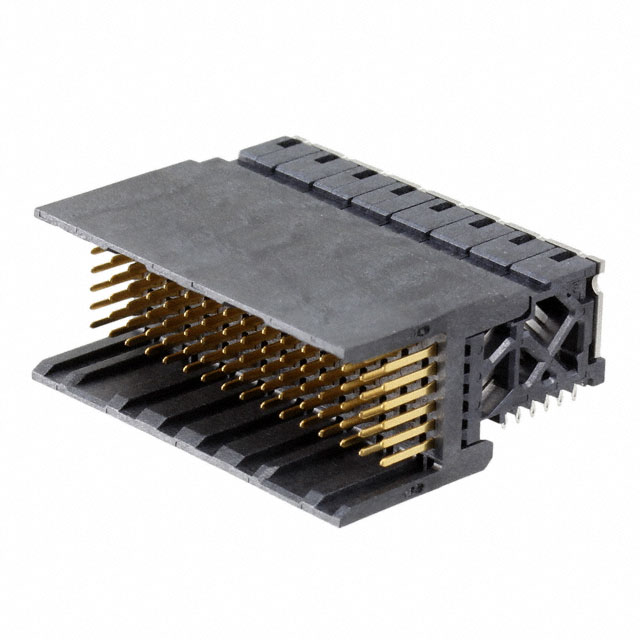

2143309-2
Or copy the link below:
- Mfr.Part #
- 2143309-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 96POS PCB
- Stock
- 16,621
- In Stock ：
- 16,621
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Housing Color :
- Black
- Housing Material :
- Polymer
- Number of Columns :
- 16
- Material Flammability Rating :
- UL94 V-0
- Length :
- 30.4mm
- Termination :
- Press-Fit
- Plating Thickness :
- 1.27μm
- Number of Ground Positions :
- 32
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Pairs :
- 32
- Published :
- 2011
- PCB Mounting Orientation :
- RIGHT ANGLE
- Shape :
- Sheet
- Number of Rows :
- 6
- Hole Diameter :
- 381 µm
- Contact Finish :
- Gold
- Make First / Break Last :
- No
- PCB Thickness :
- 1.6mm
- Min Operating Temperature :
- -67°C
- Factory Lead Time :
- 16 Weeks
- Height :
- 9.7mm
- Number of Poles :
- 96
- Orientation :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Color :
- Black
- Connector Type :
- Header, Male Pins
- Row Spacing :
- 1.35 mm
- Differential Pairs per Column :
- 2
- Number of Signal Positions :
- 64
- ELV :
- Compliant
- Contact Current Rating :
- 750mA
- Max Operating Temperature :
- 185°C
- Number of Positions :
- 96
- Series :
- Impact
- Packaging :
- Tube
- Mounting Type :
- Through Hole, Right Angle
- Impedance :
- 100Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Data Rate :
- 25 Gbps
- Width :
- 24.6126mm
- Pitch :
- 0.075 1.91mm
- Underplate Material :
- Nickel
- Flammability Rating :
- UL94 V-0
- Stackable :
- No
- RoHS Status :
- RoHS Compliant
- Differential Signaling :
- yes
- Contact Plating :
- Gold, Tin
- Connector Style :
- Impact
- Operating Temperature :
- -55°C~ 85°C
- Contact Material :
- Copper, Nickel
- Contact Style :
- Press-Fit
- Length - Tail :
- 1.2mm
- Datasheets
- 2143309-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 96 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole, Right Angle
2143309-2 Overview
It comes in Header, Male Pins packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tube case is used.It belongs to the Impact Series of products.It's best to use it when the temperature is below 185°C.This device must operate at a minimum temperature of -67°C.The device runs in -55°C~ 85°C Operating Temperature.
2143309-2 Features
Impact series
2143309-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143309-2 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
