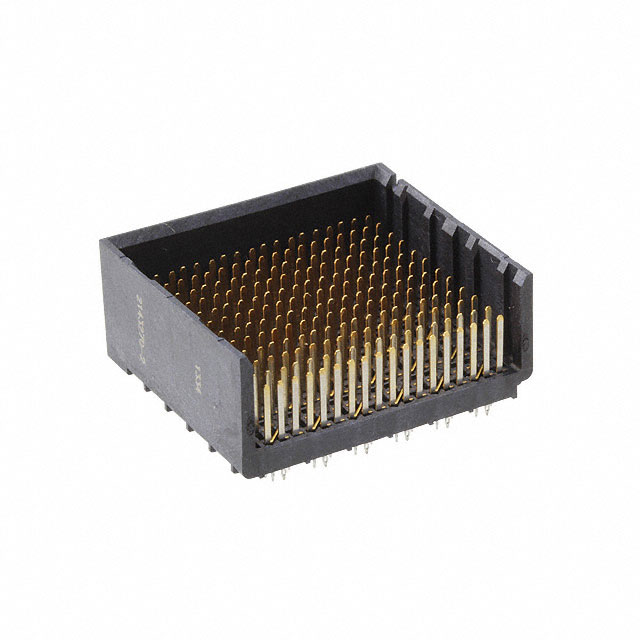

2143270-2
Or copy the link below:
- Mfr.Part #
- 2143270-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 216POS PCB
- Stock
- 47,655
- In Stock ：
- 47,655
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Impedance :
- 100Ohm
- Sealable :
- No
- Mounting Type :
- Through Hole
- Published :
- 2014
- Differential Signaling :
- yes
- Series :
- Impact
- Operating Supply Voltage :
- 30V
- Termination :
- Press-Fit
- Hole Diameter :
- 381 µm
- Pitch :
- 1.905mm
- Housing Material :
- Polymer
- Number of Rows :
- 18
- Number of Positions :
- 216
- Max Current Rating :
- 750mA
- Height :
- 11.95mm
- PCB Mounting Orientation :
- Vertical
- Shrouding :
- Partially Shrouded
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 0.75A
- Packaging :
- Tube
- Voltage - Rated :
- 30V
- Length - Tail :
- 1.4mm
- Color :
- Black
- Mating Alignment :
- With
- ELV :
- Compliant
- Current Rating :
- 750mA
- Contact Current Rating :
- 750mA
- Make First / Break Last :
- No
- Circuit Application :
- Signal
- Operating Temperature :
- -55°C~ 85°C
- Contact Plating :
- Gold, Tin
- Length :
- 25.6mm
- Number of Contacts :
- 216
- Max Operating Temperature :
- 185°C
- Differential Pairs per Column :
- 6
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Style :
- Press-Fit
- Number of Ground Positions :
- 72
- Number of Columns :
- 12
- Plating Thickness :
- 760 nm
- Connector Style :
- Impact
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 19 Weeks
- Connector Type :
- Header, Male Pins
- Min Operating Temperature :
- -67°C
- Orientation :
- Vertical
- Underplate Material :
- Nickel
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Row Spacing :
- 1.15 mm
- Number of Positions Loaded :
- All
- PCB Thickness :
- 3mm
- Stackable :
- No
- Data Rate :
- 25 Gbps
- Number of Pairs :
- 72
- Width :
- 28.9mm
- Contact Finish :
- Gold
- Number of Signal Positions :
- 144
- Housing Color :
- Black
- Datasheets
- 2143270-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 216 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2143270-2 Overview
It comes in Header, Male Pins packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the Impact Series of products.It's best to use it when the temperature is below 185°C.This device must operate at a minimum temperature of -67°C.The device runs in -55°C~ 85°C Operating Temperature.With a supply voltage of 30V, this Backplane Connector works.
2143270-2 Features
Impact series
2143270-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143270-2 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
