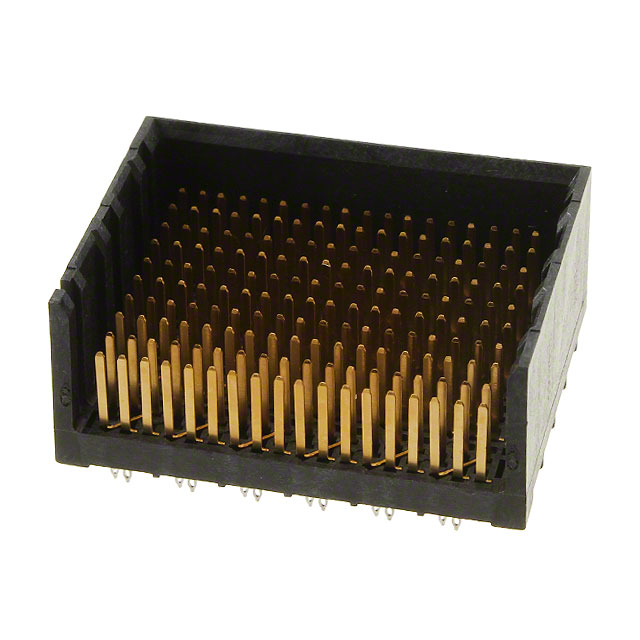

2143264-2
Or copy the link below:
- Mfr.Part #
- 2143264-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 180POS PCB
- Stock
- 40,312
- In Stock ：
- 40,312
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Voltage - Rated :
- 30V
- Operating Temperature :
- -55°C~ 85°C
- Series :
- Impact
- Length :
- 21.5mm
- Operating Supply Voltage :
- 30V
- Current Rating (Amps) :
- 0.75A
- Contact Style :
- Press-Fit
- Mounting Type :
- Through Hole
- Max Operating Temperature :
- 185°C
- Published :
- 2014
- Contact Current Rating :
- 750mA
- Flammability Rating :
- UL94 V-0
- Number of Signal Positions :
- 120
- Max Current Rating :
- 750mA
- Circuit Application :
- Signal
- Impedance :
- 100Ohm
- Number of Pairs :
- 60
- Number of Positions Loaded :
- All
- Stackable :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Current Rating :
- 750mA
- Connector Type :
- Header, Male Pins
- Factory Lead Time :
- 19 Weeks
- PCB Thickness :
- 3mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polymer
- Mating Alignment :
- With
- RoHS Status :
- Non-RoHS Compliant
- Hole Diameter :
- 457.2 µm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Differential Pairs per Column :
- 6
- Differential Signaling :
- yes
- Housing Color :
- Black
- Color :
- Black
- Pitch :
- 1.905mm
- Contact Finish :
- Gold
- Connector Style :
- Impact
- Orientation :
- Vertical
- Number of Ground Positions :
- 60
- Plating Thickness :
- 760 nm
- Number of Rows :
- 18
- Width :
- 28.9mm
- Make First / Break Last :
- No
- Min Operating Temperature :
- -67°C
- Packaging :
- Tube
- Number of Columns :
- 10
- Sealable :
- No
- Number of Contacts :
- 180
- Row Spacing :
- 1.15 mm
- Shrouding :
- Partially Shrouded
- Length - Tail :
- 1.4mm
- Data Rate :
- 25 Gbps
- Number of Positions :
- 180
- Height :
- 11.95mm
- Termination :
- Press-Fit
- PCB Mounting Orientation :
- Vertical
- Contact Plating :
- Gold, Tin
- Underplate Material :
- Nickel
- Datasheets
- 2143264-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 180 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2143264-2 Overview
Header, Male Pins packaging is included.This device has a mounting type of Through Hole.We package the product with a Tube case.The product is part of the Impact Series.If it is to be used, it should be kept at a temperature below 185°C.There must be a minimum temperature of -67°C for this device to operate.This device runs at -55°C~ 85°C operating temperature.A supply voltage of 30V works with this Backplane Connector.
2143264-2 Features
Impact series
2143264-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143264-2 Backplane Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
