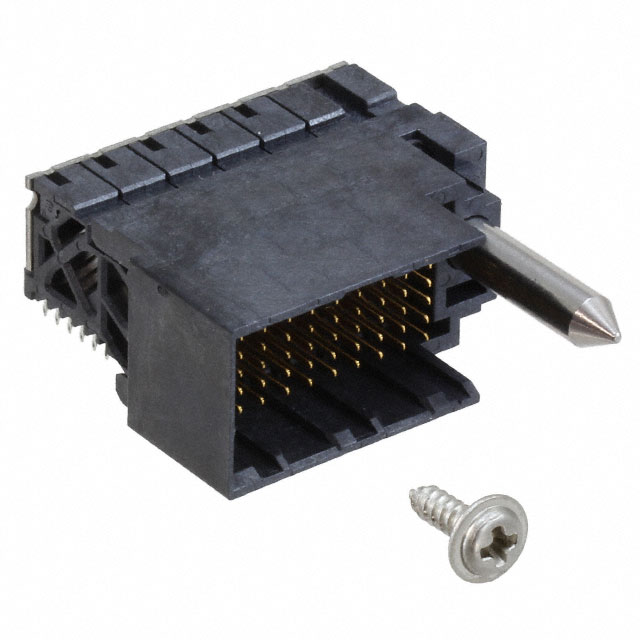

2143019-2
Or copy the link below:
- Mfr.Part #
- 2143019-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 60POS EDGE MNT
- Stock
- 171
- In Stock ：
- 171
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 1.905mm
- Max Operating Temperature :
- 185°C
- Row Spacing :
- 1.35 mm
- Height :
- 12.446mm
- Current Rating :
- 750mA
- Number of Columns :
- 10
- Length - Tail :
- 1.2mm
- Sealable :
- No
- Series :
- Impact
- Operating Temperature :
- -55°C~ 85°C
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Factory Lead Time :
- 19 Weeks
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Header, Male Pins
- Number of Positions :
- 60
- Contact Style :
- Press-Fit
- Operating Supply Voltage :
- 30V
- Color :
- Black
- Differential Signaling :
- yes
- Length :
- 26.90114mm
- Underplate Material :
- Nickel
- Contact Plating :
- Gold, Tin
- Voltage - Rated :
- 30V
- Min Operating Temperature :
- -67°C
- Current Rating (Amps) :
- 0.75A
- Number of Rows :
- 6
- Contact Finish :
- Gold
- Width :
- 24.384mm
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Material Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Current Rating :
- 750mA
- Number of Contacts :
- 60
- Mating Alignment :
- With
- Connector Style :
- Impact, Guide Right
- Number of Pairs :
- 20
- PCB Thickness :
- 1.6mm
- Packaging :
- Tube
- Differential Pairs per Column :
- 2
- Plating Thickness :
- 1.52μm
- Shrouding :
- Fully Shrouded
- Data Rate :
- 25 Gbps
- Circuit Application :
- Signal
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- ELV :
- Compliant
- Orientation :
- RIGHT ANGLE
- Number of Signal Positions :
- 40
- Make First / Break Last :
- No
- Contact Material :
- Copper, Nickel
- Termination :
- Press-Fit
- Max Current Rating :
- 750mA
- Impedance :
- 100Ohm
- Published :
- 2011
- Stackable :
- No
- Flammability Rating :
- UL94 V-0
- Hole Diameter :
- 381 µm
- Housing Material :
- Polymer
- Housing Color :
- Black
- Number of Ground Positions :
- 20
- Datasheets
- 2143019-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143019-2 Overview
Currently, it is packaged in Header, Male Pins.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tube case is used to package the product.A product of the Impact Series, it belongs to the range of products of that series.A temperature below 185°C is best for using it.The device must run at -67°C degrees.-55°C~ 85°C Operating Temperature is the default operating temperature for the device.If you supply the connector with a voltage of 30V, it will work.
2143019-2 Features
Impact series
2143019-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143019-2 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
