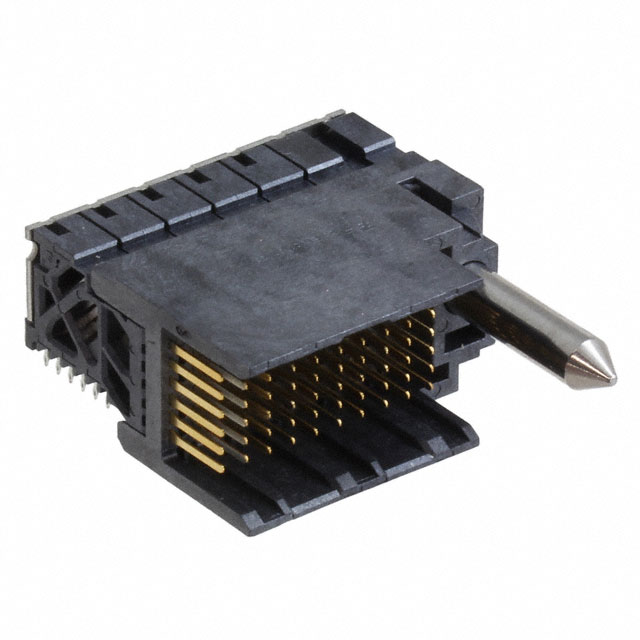

2143018-3
Or copy the link below:
- Mfr.Part #
- 2143018-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 60POS EDGE MNT
- Stock
- 166
- In Stock ：
- 166
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Ground Positions :
- 20
- Number of Positions Loaded :
- All
- Housing Material :
- Polymer
- Number of Signal Positions :
- 40
- Underplate Material :
- Nickel
- Number of Pairs :
- 20
- Contact Style :
- Press-Fit
- Height :
- 12.446mm
- Plating Thickness :
- 1.52μm
- Connector Style :
- Impact, Guide Right
- Shrouding :
- Partially Shrouded
- Orientation :
- Vertical
- Contact Plating :
- Gold, Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 750mA
- RoHS Status :
- RoHS Compliant
- Mating Alignment :
- With
- Stackable :
- No
- Contact Material :
- Copper, Nickel
- Number of Contacts :
- 60
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Published :
- 2013
- Operating Temperature :
- -55°C~ 85°C
- Voltage - Rated :
- 30V
- Differential Signaling :
- yes
- Width :
- 24.384mm
- Make First / Break Last :
- No
- Operating Supply Voltage :
- 30V
- Number of Positions :
- 60
- PCB Mounting Orientation :
- Vertical
- Pitch :
- 1.905mm
- Hole Diameter :
- 381 µm
- Current Rating (Amps) :
- 0.75A
- Contact Finish :
- Gold
- Impedance :
- 100Ohm
- Data Rate :
- 25 Gbps
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Header, Male Pins
- Max Current Rating :
- 750mA
- Sealable :
- No
- Material Flammability Rating :
- UL94 V-0
- Differential Pairs per Column :
- 2
- Packaging :
- Tube
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Columns :
- 10
- ELV :
- Compliant
- Max Operating Temperature :
- 185°C
- Housing Color :
- Black
- Series :
- Impact
- Length - Tail :
- 1.2mm
- PCB Thickness :
- 1.6mm
- Row Spacing :
- 1.35 mm
- Factory Lead Time :
- 19 Weeks
- Contact Current Rating :
- 750mA
- Circuit Application :
- Signal
- Color :
- Black
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Termination :
- Press-Fit
- Min Operating Temperature :
- -67°C
- Length :
- 20.2438mm
- Number of Rows :
- 6
- Datasheets
- 2143018-3
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143018-3 Overview
Packaging for this item is Header, Male Pins.There is a mounting type of Board Edge, Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Impact Series.You should use it when it's below 185°C.A minimum temperature of -67°C is required for the operation of this device.In this case, the device operates at -55°C~ 85°C Operating Temperature.This Backplane Connector can be used with a supply voltage of 30V.
