2143018-2
Or copy the link below:
- Mfr.Part #
- 2143018-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 60POS EDGE MNT
- Stock
- 45,620
- In Stock ：
- 45,620
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Length :
- 20.2438mm
- Max Operating Temperature :
- 185°C
- Make First / Break Last :
- No
- Number of Columns :
- 10
- ELV :
- Compliant
- Contact Material :
- Copper, Nickel
- Housing Material :
- Polymer
- Hole Diameter :
- 381 µm
- Data Rate :
- 25 Gbps
- Underplate Material :
- Nickel
- Termination :
- Press-Fit
- Contact Finish :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Header, Male Pins
- Number of Positions Loaded :
- All
- Max Current Rating :
- 750mA
- Min Operating Temperature :
- -67°C
- Impedance :
- 100Ohm
- PCB Thickness :
- 1.6mm
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -55°C~ 85°C
- Width :
- 24.384mm
- Plating Thickness :
- 1.52μm
- Contact Current Rating :
- 750mA
- Voltage - Rated :
- 30V
- Housing Color :
- Black
- Pitch :
- 1.905mm
- Number of Ground Positions :
- 20
- Packaging :
- Tube
- Number of Rows :
- 6
- Number of Pairs :
- 20
- Connector Style :
- Impact, Guide Right
- Published :
- 2011
- Height :
- 12.446mm
- Sealable :
- No
- PCB Mounting Orientation :
- RIGHT ANGLE
- Mating Alignment :
- With
- Color :
- Black
- Number of Signal Positions :
- 40
- Shrouding :
- Partially Shrouded
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 750mA
- Contact Style :
- Press-Fit
- Contact Plating :
- Gold, Tin
- Length - Tail :
- 1.2mm
- Current Rating (Amps) :
- 0.75A
- Series :
- Impact
- Stackable :
- No
- Row Spacing :
- 1.35 mm
- Differential Signaling :
- yes
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Differential Pairs per Column :
- 2
- Factory Lead Time :
- 14 Weeks
- Circuit Application :
- Signal
- Number of Contacts :
- 60
- Number of Positions :
- 60
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Operating Supply Voltage :
- 30V
- Datasheets
- 2143018-2

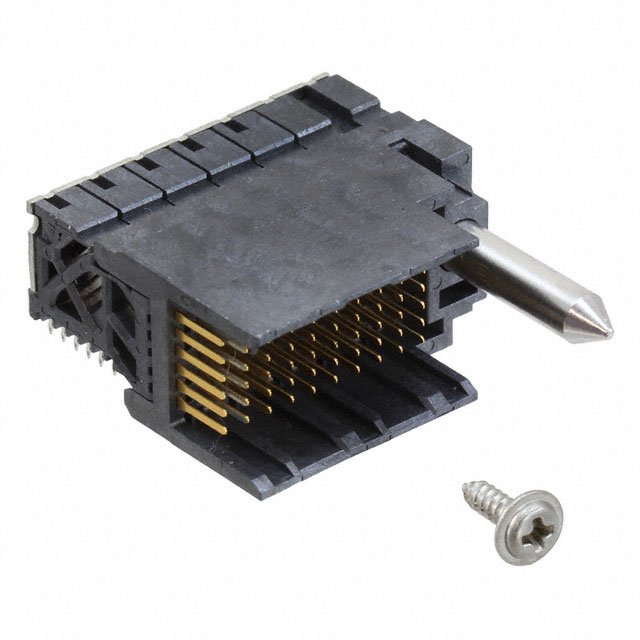

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143018-2 Overview
Packaging is in the form of Header, Male Pins.This device has a Board Edge, Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Impact Series.If the temperature is below 185°C, it's best to use it.-67°C is the minimum temperature for this device.Devices operate at -55°C~ 85°C operating temperatures.A supply voltage of 30V is necessary for this Backplane Connector to work.
2143018-2 Features
Impact series
2143018-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143018-2 Backplane Connectors applications.
