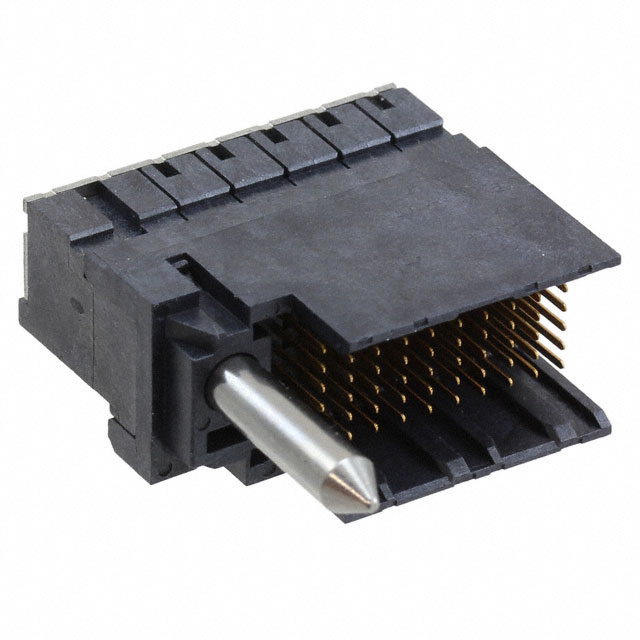

2143016-3
Or copy the link below:
- Mfr.Part #
- 2143016-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 60POS PCB
- Stock
- 15,118
- In Stock ：
- 15,118
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Differential Pairs per Column :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Hole Diameter :
- 381 µm
- Number of Signal Positions :
- 40
- Impedance :
- 100Ohm
- Connector Style :
- Impact, Guide Left
- Number of Positions Loaded :
- All
- Contact Style :
- Press-Fit
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 750mA
- Factory Lead Time :
- 19 Weeks
- Height :
- 12.446mm
- Number of Contacts :
- 60
- PCB Mounting Orientation :
- Vertical
- Length :
- 25.5524mm
- Number of Columns :
- 10
- ELV :
- Compliant
- Series :
- Impact
- Length - Tail :
- 1.2mm
- Current Rating :
- 750mA
- Orientation :
- Right Angle, Vertical
- Termination :
- Press-Fit
- Underplate Material :
- Nickel
- Housing Color :
- Black
- Color :
- Black
- Number of Ground Positions :
- 20
- Housing Material :
- Polymer
- Shrouding :
- Partially Shrouded
- Contact Finish :
- Gold
- Number of Rows :
- 6
- Number of Positions :
- 60
- Published :
- 2011
- Mating Alignment :
- With
- Make First / Break Last :
- No
- Packaging :
- Tube
- Width :
- 24.384mm
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Circuit Application :
- Signal
- Contact Plating :
- Gold, Tin
- Min Operating Temperature :
- -67°C
- Contact Current Rating :
- 750mA
- PCB Thickness :
- 1.6mm
- Number of Pairs :
- 20
- Plating Thickness :
- 1.52μm
- Operating Supply Voltage :
- 30V
- Max Operating Temperature :
- 185°C
- Differential Signaling :
- yes
- Data Rate :
- 25 Gbps
- Row Spacing :
- 1.35 mm
- Contact Material :
- Copper, Nickel
- Stackable :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Connector Type :
- Header, Male Pins
- Pitch :
- 0.075 1.91mm
- Operating Temperature :
- -55°C~ 85°C
- Datasheets
- 2143016-3
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2143016-3 Overview
The product comes in a package of Header, Male Pins.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Impact Series.Use it when the temperature is below 185°C.Temperatures below -67°C are required for this device to operate.It operates at an operating temperature of -55°C~ 85°C.As long as the supply voltage is 30V, this Backplane Connector is functional.
2143016-3 Features
Impact series
2143016-3 Applications
There are a lot of TE Connectivity AMP Connectors
2143016-3 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
