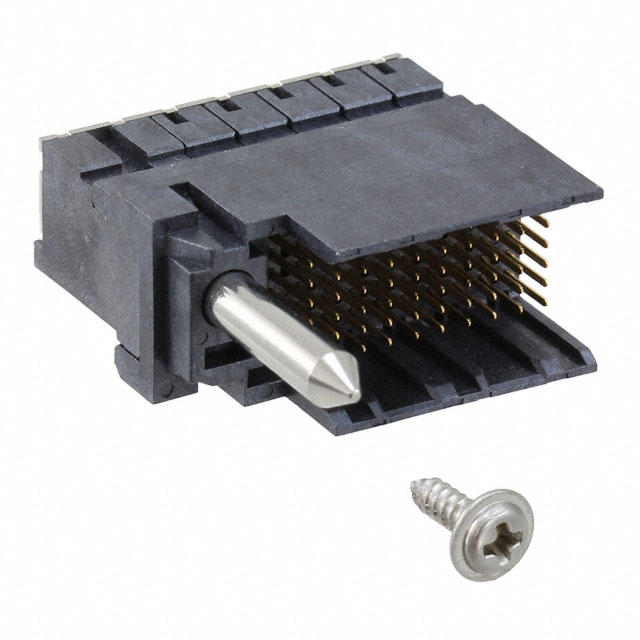

2143016-2
Or copy the link below:
- Mfr.Part #
- 2143016-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 60POS PCB
- Stock
- 44,266
- In Stock ：
- 44,266
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Positions :
- 60
- Max Operating Temperature :
- 185°C
- Circuit Application :
- Signal
- Connector Style :
- Impact, Guide Left
- Orientation :
- RIGHT ANGLE
- Flammability Rating :
- UL94 V-0
- Number of Pairs :
- 20
- Underplate Material :
- Nickel
- ELV :
- Compliant
- RoHS Status :
- RoHS Compliant
- Min Operating Temperature :
- -67°C
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Stackable :
- No
- Contact Current Rating :
- 750mA
- Number of Contacts :
- 60
- Operating Temperature :
- -55°C~ 85°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Housing Material :
- Polymer
- Row Spacing :
- 1.35 mm
- Hole Diameter :
- 381 µm
- Mounting Type :
- Through Hole
- Make First / Break Last :
- No
- Number of Positions Loaded :
- All
- Contact Style :
- Press-Fit
- Termination :
- Press-Fit
- PCB Thickness :
- 1.6mm
- Connector Type :
- Header, Male Pins
- Length - Tail :
- 1.2mm
- Differential Pairs per Column :
- 2
- Number of Ground Positions :
- 20
- Number of Rows :
- 6
- Data Rate :
- 25 Gbps
- Differential Signaling :
- yes
- Max Current Rating :
- 750mA
- Pitch :
- 0.075 1.91mm
- Contact Plating :
- Gold, Tin
- Packaging :
- Tube
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Signal Positions :
- 40
- Number of Columns :
- 10
- Material Flammability Rating :
- UL94 V-0
- Impedance :
- 100Ohm
- Sealable :
- No
- Mount :
- Through Hole
- Width :
- 24.384mm
- Height :
- 12.446mm
- Operating Supply Voltage :
- 30V
- Series :
- Impact
- Housing Color :
- Black
- Mating Alignment :
- With
- Published :
- 2011
- Current Rating :
- 750mA
- Contact Material :
- Copper, Nickel
- Contact Finish :
- Gold
- Factory Lead Time :
- 19 Weeks
- Color :
- Black
- Length :
- 25.5524mm
- Plating Thickness :
- 1.52μm
- Shrouding :
- Partially Shrouded
- Datasheets
- 2143016-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2143016-2 Overview
The packaging contains Header, Male Pins.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Impact belongs to the Impact Series.Whenever the temperature is below 185°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~ 85°C.When the supply voltage is set to 30V, this Backplane Connector will work.
2143016-2 Features
Impact series
2143016-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143016-2 Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
