2143015-2
Or copy the link below:
- Mfr.Part #
- 2143015-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 60POS EDGE MNT
- Stock
- 47,923
- In Stock ：
- 47,923
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Row Spacing :
- 1.35 mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions :
- 60
- Data Rate :
- 25 Gbps
- Make First / Break Last :
- No
- Connector Style :
- Impact
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Gold
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Height :
- 12.446mm
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 30V
- Contact Style :
- Press-Fit
- Sealable :
- No
- Gender :
- Male
- Differential Pairs per Column :
- 2
- Contact Current Rating :
- 750mA
- Min Operating Temperature :
- -67°C
- Pitch :
- 1.905mm
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 15 Weeks
- Connector Type :
- Header, Male Pins
- Hole Diameter :
- 381 µm
- PCB Thickness :
- 1.6mm
- Current Rating :
- 750mA
- Mating Alignment :
- With
- Housing Material :
- Polymer
- ELV :
- Compliant
- Number of Pairs :
- 20
- Contact Material :
- Copper, Nickel
- Number of Ground Positions :
- 20
- Packaging :
- Tube
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- RIGHT ANGLE
- Current Rating (Amps) :
- 0.75A
- Underplate Material :
- Nickel
- Max Operating Temperature :
- 185°C
- Circuit Application :
- Signal
- Contact Plating :
- Gold, Tin
- Length - Tail :
- 1.2mm
- Published :
- 2011
- Termination :
- Press-Fit
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 20.2438mm
- Plating Thickness :
- 1.52μm
- Housing Color :
- Black
- Max Current Rating :
- 750mA
- Series :
- Impact
- Differential Signaling :
- yes
- Shrouding :
- Partially Shrouded
- Depth :
- 24.65mm
- Number of Contacts :
- 60
- Width :
- 24.384mm
- Number of Columns :
- 10
- Number of Signal Positions :
- 40
- PCB Mounting Orientation :
- RIGHT ANGLE
- Mount :
- Through Hole
- Number of Rows :
- 6
- Voltage - Rated :
- 30V
- Impedance :
- 100Ohm
- Stackable :
- No
- Operating Temperature :
- -55°C~ 85°C
- Max Voltage Rating (AC) :
- 120V
- Color :
- Black
- Datasheets
- 2143015-2

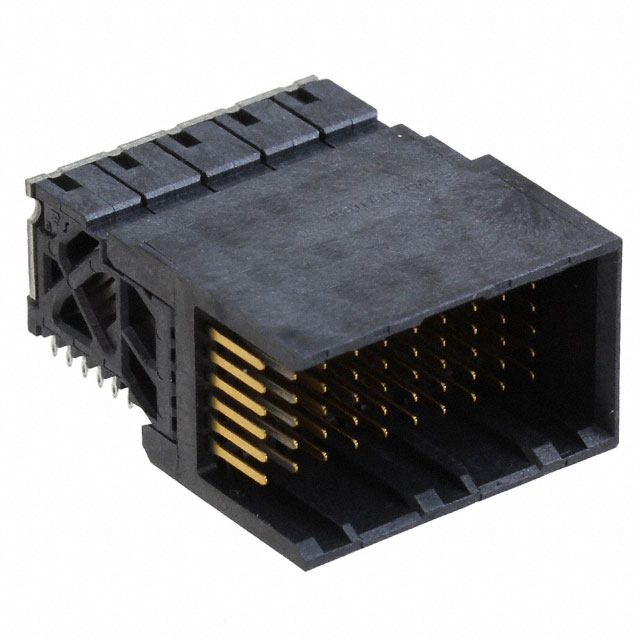

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143015-2 Overview
The product comes in a package of Header, Male Pins.Board Edge, Through Hole, Right Angle is the mount type.Tube cases are used to package the product.This product is in the Impact Series.When the temperature falls below 185°C, it is best to use it.Minimum temperature is -67°C.There's a Through Hole on the part.Operating temperature is -55°C~ 85°C.There's no problem with this Backplane Connector with a supply voltage of 30V.
2143015-2 Features
Impact series
2143015-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143015-2 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
