2143014-3
Or copy the link below:
- Mfr.Part #
- 2143014-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 60POS EDGE MNT
- Stock
- 4,162
- In Stock ：
- 4,162
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Differential Signaling :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Operating Supply Voltage :
- 30V
- Number of Signal Positions :
- 40
- Contact Material :
- Copper, Nickel
- Termination :
- Press-Fit
- PCB Mounting Orientation :
- Vertical
- Number of Positions :
- 60
- Number of Positions Loaded :
- All
- Max Operating Temperature :
- 185°C
- Differential Pairs per Column :
- 2
- Operating Temperature :
- -55°C~ 85°C
- Min Operating Temperature :
- -67°C
- Contact Plating :
- Gold, Tin
- PCB Thickness :
- 1.6mm
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polymer
- Max Current Rating :
- 750mA
- Row Spacing :
- 1.35 mm
- Width :
- 24.384mm
- Make First / Break Last :
- No
- Housing Color :
- Black
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Orientation :
- Right Angle, Vertical
- Pitch :
- 1.905mm
- Length :
- 21.6916mm
- Contact Current Rating :
- 750mA
- Contact Style :
- Press-Fit
- Flammability Rating :
- UL94 V-0
- Stackable :
- No
- Connector Type :
- Header, Male Pins
- Height :
- 12.446mm
- Contact Finish :
- Gold
- Published :
- 2015
- Connector Style :
- Impact
- Length - Tail :
- 1.2mm
- Voltage - Rated :
- 30V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Pairs :
- 20
- Data Rate :
- 25 Gbps
- Plating Thickness :
- 1.27μm
- Sealable :
- No
- Current Rating :
- 750mA
- Hole Diameter :
- 381 µm
- Underplate Material :
- Nickel
- Shrouding :
- Fully Shrouded
- Number of Ground Positions :
- 20
- Current Rating (Amps) :
- 0.75A
- Number of Columns :
- 10
- Series :
- Impact
- Circuit Application :
- Signal
- Mating Alignment :
- With
- Packaging :
- Tube
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 6
- Factory Lead Time :
- 19 Weeks
- Number of Contacts :
- 60
- ELV :
- Compliant
- Color :
- Black
- Impedance :
- 100Ohm
- Datasheets

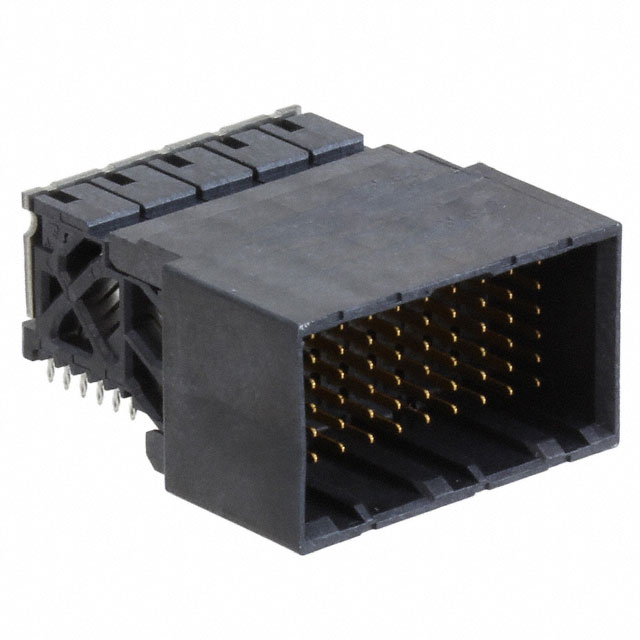

- 2143014-3
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143014-3 Overview
Currently, it is packaged in Header, Male Pins.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tube case is used to package the product.A product of the Impact Series, it belongs to the range of products of that series.A temperature below 185°C is best for using it.The device must run at -67°C degrees.-55°C~ 85°C Operating Temperature is the default operating temperature for the device.If you supply the connector with a voltage of 30V, it will work.
2143014-3 Features
Impact series
2143014-3 Applications
There are a lot of TE Connectivity AMP Connectors
2143014-3 Backplane Connectors applications.
