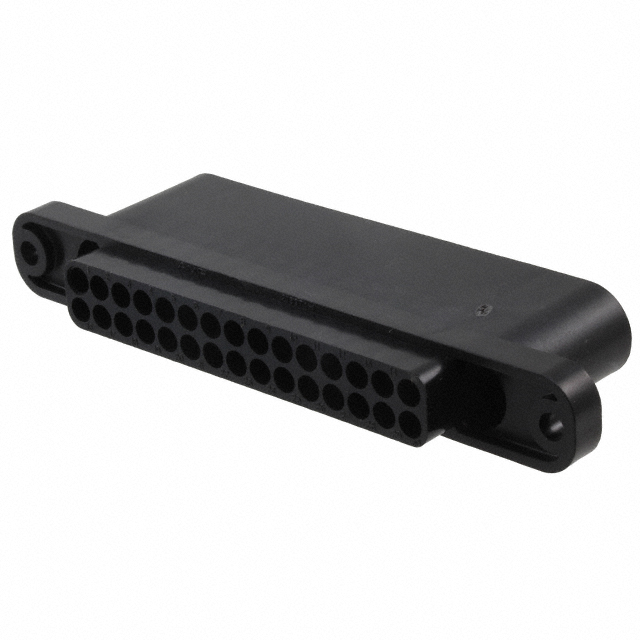

213974-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Insulation Resistance :

100000000Ohm

Reliability :

COMMERCIAL

RoHS Status :

RoHS Compliant

Max Operating Temperature :

130°C

Series :

Metrimate

Current Rating :

14A

Wire/Cable Type :

Discrete

Shell Material :

GLASS FILLED THERMOPLASTIC

Pitch :

0.197 5.00mm

ECCN Code :

EAR99

Contact Gender :

FEMALE

Published :

1998

DIN Conformance :

No

Depth :

37.59mm

Body Breadth :

0.615 inch

Flammability Rating :

UL94 V-0

Orientation :

Straight

Length :

118.49mm

Connector Type :

Receptacle

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

VDE Tested :

yes

Max Voltage Rating (AC) :

600V

Min Operating Temperature :

-55°C

Rated Current (Signal) :

7.5A

Total Number of Contacts :

30

Voltage - Rated :

600V

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Color :

Black

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

0.200 (5.08mm)

Contact Type :

Male Pin

IEC Conformance :

No

Mounting Type :

Panel Mount

Contact Termination :

Solder

Factory Lead Time :

7 Weeks

Number of Positions :

30

Packaging :

Bulk

Filter Feature :

No

Number of Rows :

2

Option :

GENERAL PURPOSE

Mount :

Panel

Pbfree Code :

yes

Note :

Contacts Not Included

Radiation Hardening :

No

UL Flammability Code :

94V-0

Approval Agency :

UL

Operating Supply Voltage :

600V

Empty Shell :

No

Panel Thickness :

2.3114mm

Housing Material :

Polyester

Width :

15.62mm
