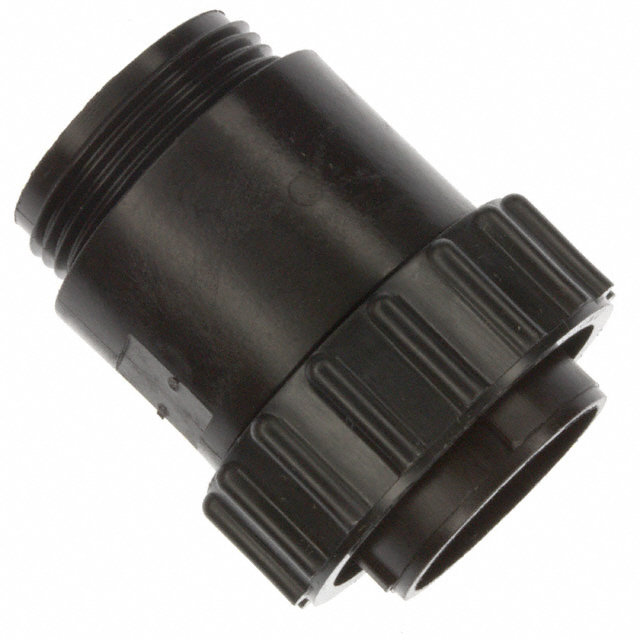

213906-1
Or copy the link below:
- Mfr.Part #
- 213906-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLG HSG MALE 10POS INLINE
- Stock
- 14,354
- In Stock ：
- 14,354
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Operating Temperature :
- -55°C~105°C
- Number of Positions :
- 10 (8 + 2 Power)
- Connector Type :
- Plug Housing
- Filter Feature :
- No
- Current Rating :
- 45A
- Insulation Diameter :
- 6.6 mm
- Number of Terminations :
- 10
- Series :
- CPC Series 6
- Feature :
- Coupling Nut
- Shell Size - Insert :
- 17-10
- Factory Lead Time :
- 4 Weeks
- Lead Free :
- Lead Free
- Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Fastening Type :
- Threaded
- Operating Supply Voltage :
- 250V
- ELV :
- Compliant
- Approval Agency :
- CSA, UL, VDE
- Shell Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Insulation Material :
- Plastic
- Number of Signal Positions :
- 8
- Insert Material :
- Thermoplastic
- Mounting Type :
- Free Hanging (In-Line)
- Mating Retention :
- With
- Shielding :
- Unshielded
- IEC Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Gender :
- Male
- REACH SVHC :
- No SVHC
- Packaging :
- Bulk
- Orientation :
- Keyed
- RoHS Status :
- RoHS Compliant
- Type :
- For Male Pins
- Mount :
- Cable, Free Hanging
- Number of Ports :
- 1
- Pbfree Code :
- yes
- Published :
- 1997
- Empty Shell :
- yes
- Housing Material :
- Nylon
- Contact Shape :
- Circular
- Contact Size :
- 16 8 8 Power 2
- MIL Conformance :
- No
- Voltage - Rated DC :
- 250V
- Ratings :
- Dust Tight, IP65, IP67, Waterproof
- Note :
- Contacts Not Included
- Total Number of Contacts :
- 10
- Voltage - Rated AC :
- 250V
- VDE Tested :
- No
- Contact Type :
- Crimp
- Sealable :
- yes
- ECCN Code :
- EAR99
- Number of Power Positions :
- 2
- Length :
- 40.87mm
- Ingress Protection :
- IP65/67 - Dust Tight, Water Resistant, Waterproof
- Datasheets
- 213906-1
Plug Housing Polyamide (PA66), Nylon 6/6, Glass Filled Free Hanging (In-Line) 10 (8 + 2 Power) Positions Bulk Threaded Unshielded Contacts Not Included CPC Series 6
213906-1 Overview
Packaging is Plug Housing.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the CPC Series 6 Series, it can be found in this category.In addition to its many benefits, this part is also compatible with other products of [0].By operating the device, Coupling Nut is maintained at all times.When mounting this part, a Cable, Free Hanging socket must be used.A variety of tasks can be managed via its 1 ports.A 10 termination is the process of terminating a transmission line with a device that matches the characteristic impedance of the line.
213906-1 Features
10 basic kinds of terminations
CPC Series 6 series
213906-1 Applications
There are a lot of TE Connectivity AMP Connectors
213906-1 Circular Connectors applications.
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
