2138651637
Or copy the link below:
- Mfr.Part #
- 2138651637
- Manufacturer
- Molex
- Package / Case
- Ring Lug
- Datasheet
- Download
- Description

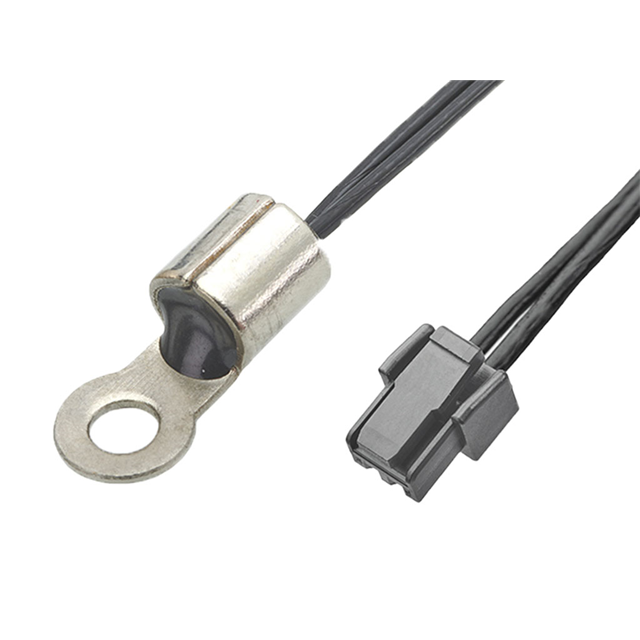

- NTC RING CBL 3982 M3.5 300MM 10K
- Stock
- 1,833
- In Stock ：
- 1,833
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Temperature Sensors - NTC Thermistors
- Tolerance :
- 1 %
- Package :
- Bag
- Product Type :
- NTC Thermistors
- Power - Max :
- 150 mW
- B Value Tolerance :
- ±2%
- Minimum Operating Temperature :
- - 40 C
- Subcategory :
- Thermistors
- RoHS :
- Details
- Diameter :
- 3.7 mm
- Resistance Tolerance :
- ±1%
- Resistance :
- 10 kOhms
- Package / Case :
- Ring Lug
- Maximum Operating Temperature :
- + 105 C
- B25/100 :
- -
- Resistance in Ohms @ 25°C :
- 10k
- B0/50 :
- -
- Length - Lead Wire :
- 11.81" (300.00mm)
- Manufacturer :
- Molex
- Product Status :
- Active
- B25/75 :
- -
- Operating Temperature :
- -40°C ~ 105°C
- Length :
- 300 mm
- Mounting Style :
- Ring Lug
- Product Category :
- NTC Thermistors
- Termination Style :
- Wire Lead
- B25/85 :
- 3982K
- Mounting Type :
- Free Hanging
- Base Product Number :
- 213865
- Series :
- 213865
- B25/50 :
- -
- Brand :
- Molex
- Datasheets
- 2138651637
2138651637 Documents
213865 Series Tolerance:1 % Free Hanging -40°C ~ 105°C 3982K B Value Tolerance:±2%
2138651637 Overview
We have included it in the Ring Lug package for your convenience. As a result, NTC thermistors must have a resistance tolerance of ±1% in order to function correctly. NTC thermistors should be set to -40°C ~ 105°C temperature in order to provide reliable performance. In the NTC thermometers, 150 mW is the maximum power setting.
2138651637 Features
213865 Series
Operating Temperature: -40°C ~ 105°C
10 kOhms Resistance
Mounting Type: Free Hanging
1 % Tolerance
2138651637 Applications
There are a lot of Molex
2138651637 NTC Thermistors applications.
- Temperature detection for CPU and memory device
- Temperature compensation for ink-viscosity (Inkjet Printer)
- Temperature detection of battery cells
- Temperature compensation of display contrast
- Temperature compensation of display backlighting (CCFL)
- Personal Computer and Peripheral Device
- Personal Computer and Peripheral Device
- Liquid Crystal Display
- Temperature measurement and compensation
- LCD compensation
