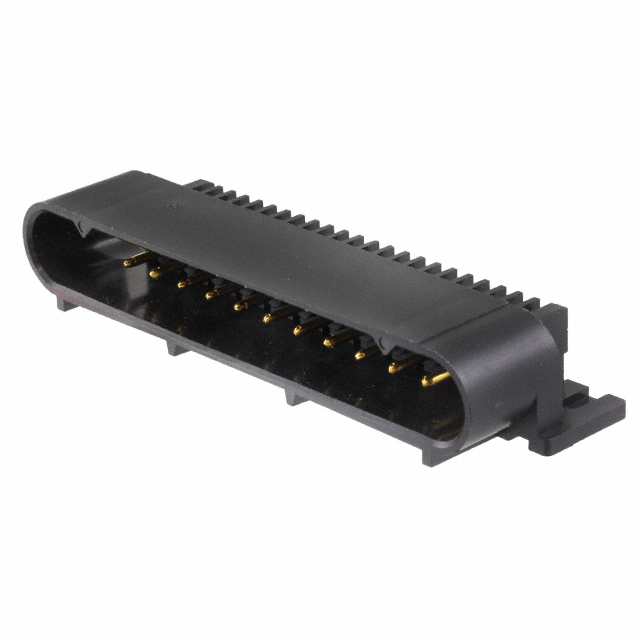

213768-4
Or copy the link below:
- Mfr.Part #
- 213768-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 23POS 6.35MM
- Stock
- 15,350
- In Stock ：
- 15,350
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Plating :
- Gold, Tin
- Approval Agency :
- UL
- Mount :
- Through Hole
- Length - Tail :
- 2.54mm
- Number of Rows :
- 2
- Operating Supply Voltage :
- 600V
- Pitch - Mating :
- 0.250 6.35mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Color :
- Black
- Flammability Rating :
- UL94 V-0
- VDE Tested :
- yes
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Black
- Published :
- 2008
- PCB Mounting Orientation :
- RIGHT ANGLE
- Voltage - Rated :
- 600V
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Board or Cable
- Contact Finish - Post :
- Tin
- Packaging :
- Tray
- Depth :
- 28.96mm
- Pitch :
- 5.08mm
- Max Voltage Rating (AC) :
- 600V
- Length :
- 98.0948mm
- Height :
- 17.526mm
- Gender :
- Male
- Contact Length - Post :
- 0.100 2.54mm
- Applications :
- Automotive, General Purpose, Industrial
- Insulation Height :
- 0.690 17.53mm
- Contact Shape :
- Circular
- Contact Current Rating :
- 7.5A
- Mounting Type :
- Through Hole, Right Angle
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 23
- Connector Type :
- Header
- PCB Thickness :
- 1.6002mm
- Housing Color :
- Black
- Max Operating Temperature :
- 130°C
- Mating Alignment :
- With
- Current Rating (Amps) :
- 7.5A
- Current Rating :
- 14A
- Contact Material :
- Brass
- Feature :
- Mounting Flange
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Orientation :
- RIGHT ANGLE
- Factory Lead Time :
- 20 Weeks
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- ELV :
- Compliant
- Housing Material :
- Polyester
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Min Operating Temperature :
- -55°C
- Fastening Type :
- Push-Pull
- Width :
- 28.956mm
- Number of Contacts :
- 23
- PCB Mount Retention :
- With
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Series :
- Metrimate
- Insulation Material :
- Polyamide (PA), Nylon
- Operating Temperature :
- -55°C~130°C
- Datasheets
- 213768-4
Metrimate Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyamide (PA), Nylon 23-Position Board to Board or Cable 0.690 17.53mm Height
213768-4 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the Metrimate Series.When the temperature is below 130°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.The device could be used for the following application: Automotive, General Purpose, Industrial.There are a number of advantages to its Mounting Flange feature.Part Through Hole is mounted to the part.600V is the operating supply voltage for this memory.As a result, the device runs at -55°C~130°C Operating Temperature.
213768-4 Features
Metrimate series
213768-4 Applications
There are a lot of TE Connectivity AMP Connectors
213768-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
