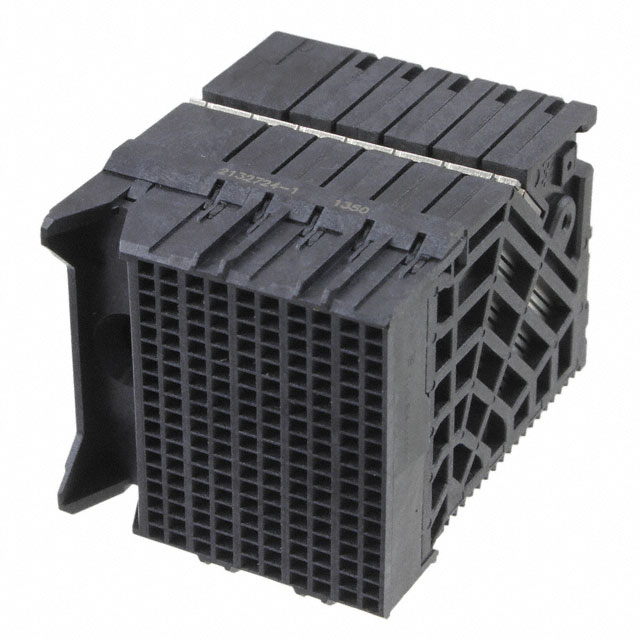

2132724-1
Or copy the link below:
- Mfr.Part #
- 2132724-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 180POS EDGE MNT
- Stock
- 68
- In Stock ：
- 68
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Published :
- 2015
- Contact Style :
- Press-Fit
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Hole Diameter :
- 457.2 µm
- Number of Rows :
- 18
- Orientation :
- RIGHT ANGLE
- Max Operating Temperature :
- 185°C
- Color :
- Black
- Voltage - Rated :
- 30V
- Differential Signaling :
- yes
- Material Flammability Rating :
- UL94 V-0
- Series :
- Impact
- ELV :
- Compliant
- Underplate Material :
- Nickel
- Shrouding :
- Unshrouded
- PCB Thickness :
- 1mm
- Row Spacing :
- 1.35 mm
- Length - Tail :
- 1.2mm
- Stackable :
- No
- Termination :
- Press-Fit
- Packaging :
- Tube
- Make First / Break Last :
- No
- Connector Type :
- Receptacle, Female Sockets
- Number of Contacts :
- 180
- Mating Alignment :
- With
- Current Rating (Amps) :
- 0.75A
- Housing Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Sealable :
- No
- Contact Finish :
- Gold
- Width :
- 37.3mm
- Current Rating :
- 750mA
- Length :
- 28.35mm
- Pitch :
- 1.905mm
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 30V
- Number of Ground Positions :
- 60
- Factory Lead Time :
- 14 Weeks
- Differential Pairs per Column :
- 6
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Circuit Application :
- Signal
- Contact Plating :
- Gold, Tin
- Number of Positions :
- 180
- PCB Mounting Orientation :
- RIGHT ANGLE
- Height :
- 25.4mm
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Plating Thickness :
- 1.52μm
- Number of Pairs :
- 60
- Connector Style :
- Impact, Guide Left
- Contact Current Rating :
- 750mA
- Housing Material :
- Polymer
- Impedance :
- 100Ohm
- Min Operating Temperature :
- -67°C
- Operating Temperature :
- -55°C~ 85°C
- Data Rate :
- 25 Gbps
- Number of Columns :
- 10
- Number of Signal Positions :
- 120
- Max Current Rating :
- 750mA
- Datasheets
- 2132724-1
2132724-1 Documents
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 180 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2132724-1 Overview
Receptacle, Female Sockets packaging is included.This device has a mounting type of Board Edge, Through Hole, Right Angle.We package the product with a Tube case.The product is part of the Impact Series.If it is to be used, it should be kept at a temperature below 185°C.There must be a minimum temperature of -67°C for this device to operate.This device runs at -55°C~ 85°C operating temperature.A supply voltage of 30V works with this Backplane Connector.
2132724-1 Features
Impact series
2132724-1 Applications
There are a lot of TE Connectivity AMP Connectors
2132724-1 Backplane Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
