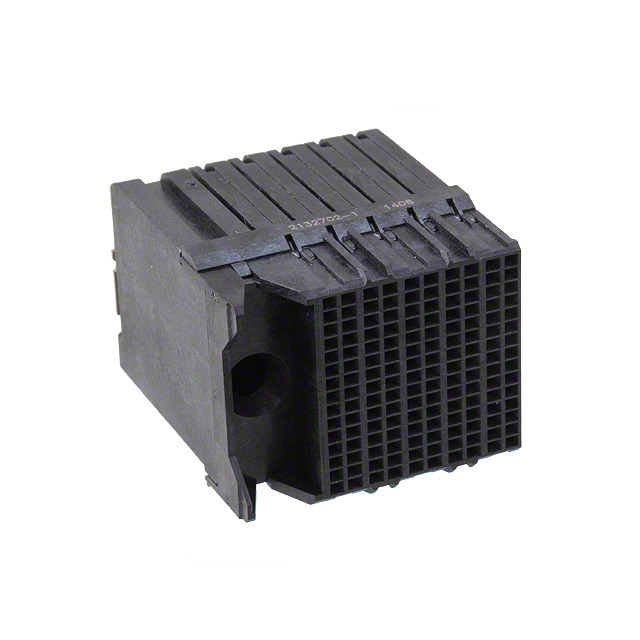

2132702-1
Or copy the link below:
- Mfr.Part #
- 2132702-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 150POS EDGE MNT
- Stock
- 46,851
- In Stock ：
- 46,851
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Differential Signaling :
- yes
- Max Operating Temperature :
- 185°C
- Impedance :
- 100Ohm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Published :
- 2012
- Max Current Rating :
- 750mA
- ELV :
- Compliant
- RoHS Status :
- RoHS Compliant
- PCB Thickness :
- 1mm
- Length :
- 28.35mm
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle, Female Sockets
- Sealable :
- No
- Orientation :
- RIGHT ANGLE
- Number of Rows :
- 15
- Series :
- Impact
- Contact Style :
- Press-Fit
- Width :
- 32.2mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Make First / Break Last :
- No
- Number of Ground Positions :
- 50
- Number of Positions :
- 150
- Number of Positions Loaded :
- All
- Min Operating Temperature :
- -67°C
- Plating Thickness :
- 1.52μm
- Height :
- 21.4122mm
- Differential Pairs per Column :
- 5
- Contact Plating :
- Gold, Tin
- Number of Contacts :
- 150
- Housing Material :
- Polymer
- Current Rating :
- 750mA
- Length - Tail :
- 1.2mm
- Underplate Material :
- Nickel
- Flammability Rating :
- UL94 V-0
- Number of Signal Positions :
- 100
- Connector Usage :
- Daughtercard
- Housing Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Supply Voltage :
- 30V
- Data Rate :
- 25 Gbps
- Hole Diameter :
- 457.2 µm
- Termination :
- Press-Fit
- Current Rating (Amps) :
- 0.75A
- Packaging :
- Tube
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Connector Style :
- Impact, Guide Left
- Feature :
- Board Guide
- Row Spacing :
- 1.35 mm
- Contact Current Rating :
- 750mA
- Number of Pairs :
- 50
- Mating Alignment :
- With
- Factory Lead Time :
- 19 Weeks
- Number of Columns :
- 10
- Contact Finish :
- Gold
- Color :
- Black
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Circuit Application :
- Signal
- Operating Temperature :
- -55°C~ 85°C
- Shrouding :
- Unshrouded
- Voltage - Rated :
- 30V
- Stackable :
- No
- Pitch :
- 1.905mm
- Datasheets
- 2132702-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 150 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2132702-1 Overview
Currently, it is packaged in Receptacle, Female Sockets.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tube case is used to package the product.A product of the Impact Series, it belongs to the range of products of that series.A temperature below 185°C is best for using it.The device must run at -67°C degrees.A number of features make the Board Guide feature more powerful.-55°C~ 85°C Operating Temperature is the default operating temperature for the device.If you supply the connector with a voltage of 30V, it will work.
2132702-1 Features
Impact series
2132702-1 Applications
There are a lot of TE Connectivity AMP Connectors
2132702-1 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
