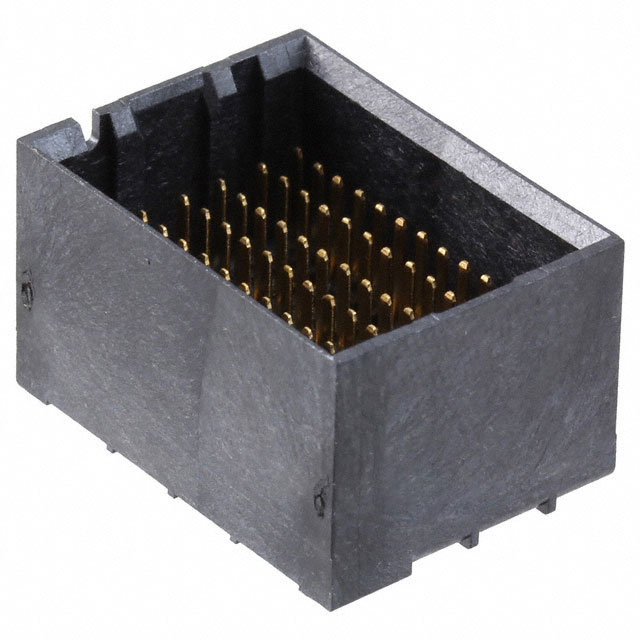

2132599-2
Or copy the link below:
- Mfr.Part #
- 2132599-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 72POS PCB
- Stock
- 20,918
- In Stock ：
- 20,918
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Operating Supply Voltage :
- 30V
- Max Operating Temperature :
- 185°C
- Length :
- 14.8mm
- Row Spacing :
- 1.15 mm
- Contact Plating :
- Gold, Tin
- Number of Rows :
- 12
- Max Current Rating :
- 750mA
- Number of Ground Positions :
- 24
- Pitch :
- 1.905mm
- Shrouding :
- Fully Shrouded
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header, Male Pins
- Packaging :
- Tube
- Data Rate :
- 25 Gbps
- Plating Thickness :
- 760 nm
- Contact Current Rating :
- 750mA
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Vertical
- Min Operating Temperature :
- -67°C
- Circuit Application :
- Signal
- ELV :
- Compliant
- Operating Temperature :
- -55°C~ 85°C
- Mating Alignment :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Material :
- Copper, Nickel
- Differential Signaling :
- yes
- Termination :
- Press-Fit
- Width :
- 20.8026mm
- PCB Mounting Orientation :
- Vertical
- Contact Finish :
- Gold
- Number of Positions :
- 72
- Number of Pairs :
- 24
- Color :
- Black
- Number of Positions Loaded :
- All
- Number of Signal Positions :
- 48
- Factory Lead Time :
- 14 Weeks
- Hole Diameter :
- 381 µm
- Impedance :
- 100Ohm
- Differential Pairs per Column :
- 4
- Number of Contacts :
- 72
- Published :
- 2011
- Contact Style :
- Press-Fit
- Housing Color :
- Black
- Voltage - Rated :
- 30V
- Underplate Material :
- Nickel
- Height :
- 11.95mm
- Stackable :
- No
- Make First / Break Last :
- No
- Number of Columns :
- 6
- Contact Finish Thickness :
- 30.0μin 0.76μm
- PCB Thickness :
- 3mm
- Housing Material :
- Polymer
- Series :
- Impact
- Mounting Type :
- Through Hole
- Sealable :
- No
- Current Rating :
- 750mA
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 0.75A
- Length - Tail :
- 1.4mm
- Connector Style :
- Impact
- Datasheets
- 2132599-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 72 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2132599-2 Overview
This product is packaged in a Header, Male Pins cartonThis device's mounting type is Through Hole.It's packaged in a Tube case.Impact Series product.The best time to use this device is when the temperature is below 185°C.It has to be at least -67°C degrees to work.Running in -55°C~ 85°C Operating Temperature.When the supply voltage is 30V, this Backplane Connector works.
2132599-2 Features
Impact series
2132599-2 Applications
There are a lot of TE Connectivity AMP Connectors
2132599-2 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
