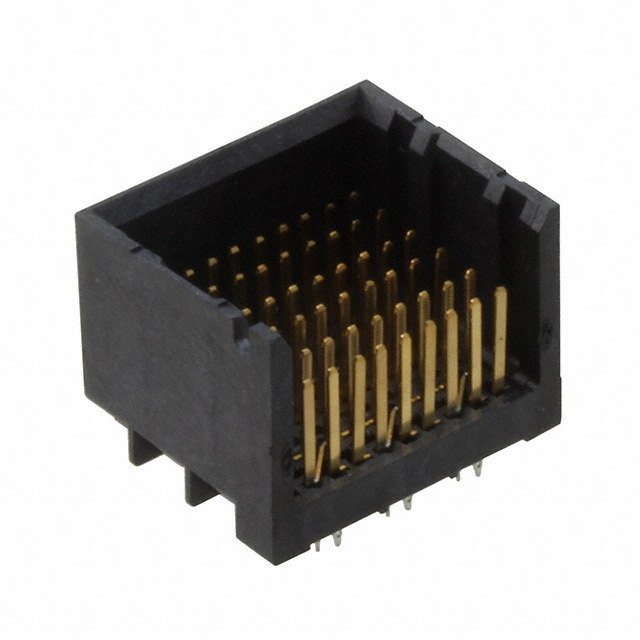

2132568-2
Or copy the link below:
- Mfr.Part #
- 2132568-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 54POS PCB
- Stock
- 29,068
- In Stock ：
- 29,068
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Mounting Type :
- Through Hole
- Published :
- 2011
- Voltage - Rated :
- 30V
- Impedance :
- 100Ohm
- Min Operating Temperature :
- -67°C
- Connector Type :
- Header, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Signal
- Length - Tail :
- 1.4mm
- Number of Positions Loaded :
- All
- Contact Style :
- Press-Fit
- Max Current Rating :
- 750mA
- Differential Signaling :
- yes
- Contact Material :
- Copper, Nickel
- Packaging :
- Tube
- Number of Rows :
- 9
- Contact Finish :
- Gold
- Color :
- Black
- Termination :
- Press-Fit
- Connector Style :
- Impact
- Mating Alignment :
- With
- Max Operating Temperature :
- 185°C
- Factory Lead Time :
- 14 Weeks
- Number of Signal Positions :
- 36
- Height :
- 11.95mm
- Row Spacing :
- 1.15 mm
- Housing Material :
- Polymer
- Stackable :
- No
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 30V
- PCB Thickness :
- 3mm
- Current Rating (Amps) :
- 0.75A
- Number of Positions :
- 54
- Housing Color :
- Black
- PCB Mounting Orientation :
- Vertical
- Number of Columns :
- 6
- Sealable :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Shrouding :
- Partially Shrouded
- Pitch :
- 1.905mm
- Contact Current Rating :
- 750mA
- Plating Thickness :
- 1.27μm
- Number of Ground Positions :
- 18
- Length :
- 13.4mm
- Contact Plating :
- Gold, Tin
- Material Flammability Rating :
- UL94 V-0
- Make First / Break Last :
- No
- Current Rating :
- 750mA
- Data Rate :
- 25 Gbps
- RoHS Status :
- RoHS Compliant
- Hole Diameter :
- 381 µm
- Differential Pairs per Column :
- 3
- Underplate Material :
- Nickel
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Operating Temperature :
- -55°C~ 85°C
- Orientation :
- Vertical
- Width :
- 16.7mm
- Series :
- Impact
- Number of Pairs :
- 18
- ELV :
- Compliant
- Number of Contacts :
- 54
- Datasheets
- 2132568-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 54 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2132568-2 Overview
A Header, Male Pins package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the Impact Series of products.Whenever it's below 185°C, it's best to use it.The device must operate at a temperature of -67°C at all times.There is no operating temperature for the device.This Backplane Connector operates with a supply voltage of 30V.
2132568-2 Features
Impact series
2132568-2 Applications
There are a lot of TE Connectivity AMP Connectors
2132568-2 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
