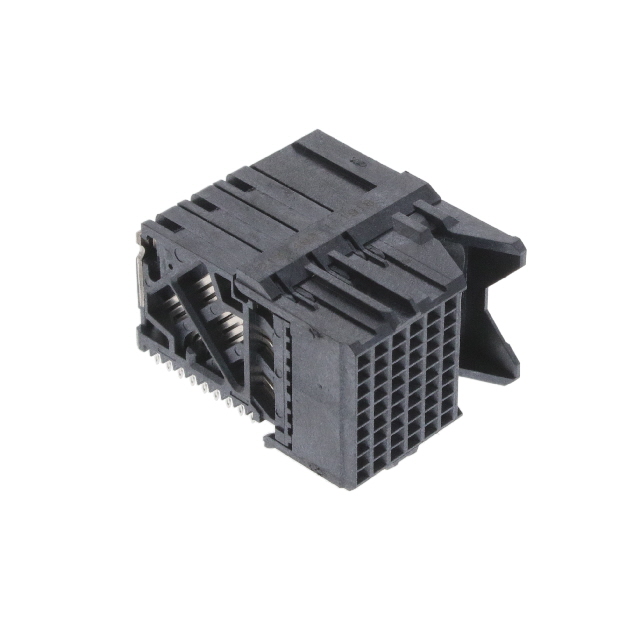

2132499-1
Or copy the link below:
- Mfr.Part #
- 2132499-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Module
- Datasheet
- Download
- Description
- IMP100S,R,RA3P6C,RG,39
- Stock
- 233
- In Stock ：
- 233
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Connector Type :
- Receptacle, Female Sockets
- Factory Lead Time :
- 18 Weeks
- Number of Columns :
- 6
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Connector Style :
- Impact, Guide Right
- Row Spacing :
- 1.35 mm
- Color :
- Black
- Connector Usage :
- Daughtercard
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Pitch :
- 0.075 1.91mm
- Number of Positions :
- 54
- Series :
- Impact
- Published :
- 2015
- Number of Rows :
- 9
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Operating Temperature :
- -55°C~85°C
- Shrouding :
- Unshrouded
- Mating Alignment :
- With
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Layout, Typical :
- 36 Signal, 18 Ground
- Termination :
- Press-Fit
- Max Current Rating :
- 750mA
- Current Rating :
- 750mA
- Sealable :
- No
- Feature :
- Board Guide
- Package / Case :
- Module
- Orientation :
- RIGHT ANGLE
- Material Flammability Rating :
- UL94 V-0
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2132499-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 54 Positions Pitch: 0.075 1.91mm -55°C~85°C Bulk Board Edge, Through Hole, Right Angle
2132499-1 Overview
The product is packaged in Receptacle, Female Sockets.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Impact Series.Module indicates that the package contains an enclosed device.There are a number of advantages to its Board Guide feature.As a result, the device runs at -55°C~85°C Operating Temperature.
2132499-1 Features
Impact series
2132499-1 Applications
There are a lot of TE Connectivity AMP Connectors
2132499-1 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
