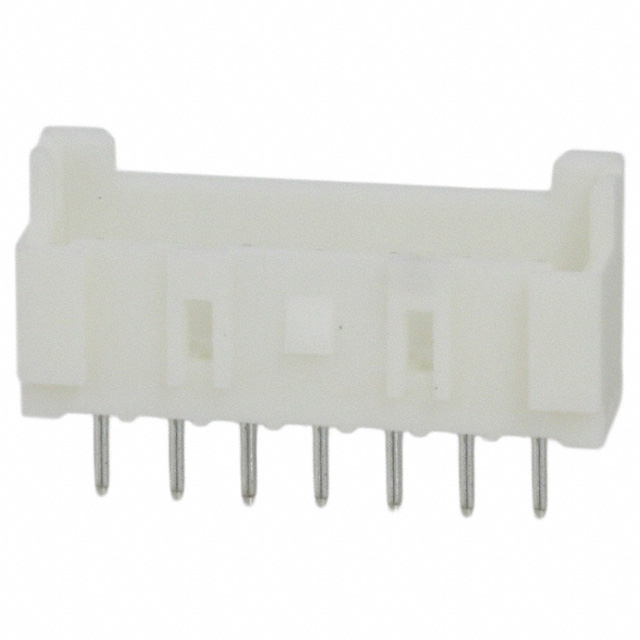

2132415-7
Or copy the link below:
- Mfr.Part #
- 2132415-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 2.5MM
- Stock
- 7,008
- In Stock ：
- 7,008
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 7
- Color :
- Natural
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Contact Length - Mating :
- 0.141 3.60mm
- Mating Retention :
- With
- Plating Thickness :
- 2.03μm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Operating Supply Voltage :
- 250V
- Gender :
- Male
- Max Voltage Rating (AC) :
- 250V
- Contact Length - Post :
- 0.134 3.40mm
- Mount :
- Through Hole
- Connector Type :
- Header
- RoHS Status :
- RoHS Compliant
- Height :
- 8.8mm
- Contact Shape :
- Circular
- Published :
- 2004
- Length - Tail :
- 3.4mm
- Max Operating Temperature :
- 221°C
- Fastening Type :
- Friction Lock
- Depth :
- 6.4mm
- Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- Vertical
- Length :
- 22.5mm
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Min Operating Temperature :
- 131°C
- Current Rating :
- 4.2A
- PCB Mount Alignment :
- Without
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Type :
- Male Pin
- Sealable :
- No
- Packaging :
- Bulk
- Pitch - Mating :
- 0.098 2.50mm
- Contact Current Rating :
- 4.2A
- REACH SVHC :
- No SVHC
- Contact Style :
- Straight
- Factory Lead Time :
- 21 Weeks
- Contact Plating :
- Tin
- Current Rating (Amps) :
- 4.2A
- PCB Mount Retention :
- With
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- PCB Thickness :
- 1.6002mm
- ELV :
- Compliant
- Width :
- 6.4mm
- Insulation Color :
- Natural
- Pitch :
- 2.5mm
- Plating :
- Tin
- Orientation :
- Vertical
- Radiation Hardening :
- No
- Number of Contacts :
- 7
- Insulation Height :
- 0.346 8.80mm
- Mating Post Length :
- 3.6mm
- Style :
- Board to Cable/Wire
- Termination :
- Kinked Pin, Solder
- Housing Color :
- Natural, White
- Number of Rows :
- 1
- Contact Finish - Post :
- Tin
- Applications :
- General Purpose, Industrial, Lighting
- Series :
- Economy Power 2.5
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 250VAC
- Contact Material :
- Brass
- Housing Material :
- Nylon
- Mounting Type :
- Through Hole
- Operating Temperature :
- -55°C~105°C
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 2132415-7
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 7-Position Board to Cable/Wire 0.346 8.80mm Height
2132415-7 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Economy Power 2.5 Series.You should use it when it's below 221°C.A minimum temperature of 131°C is required for the operation of this device.A possible application for the device is General Purpose, Industrial, Lighting.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -55°C~105°C Operating Temperature.
2132415-7 Features
Economy Power 2.5 series
2132415-7 Applications
There are a lot of TE Connectivity AMP Connectors
2132415-7 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
