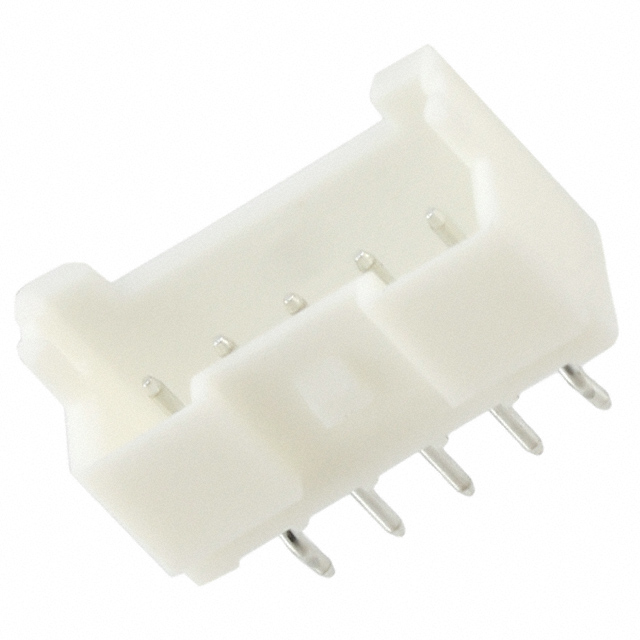

2132415-5
Or copy the link below:
- Mfr.Part #
- 2132415-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 2.5MM
- Stock
- 37,735
- In Stock ：
- 37,735
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Style :
- Straight
- REACH SVHC :
- No SVHC
- Mating Post Length :
- 3.6mm
- Factory Lead Time :
- 21 Weeks
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Natural
- Length :
- 17.5mm
- Height :
- 8.8mm
- Mount :
- Through Hole
- Number of Positions Loaded :
- All
- PCB Thickness :
- 1.6002mm
- Housing Material :
- Nylon
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Shape :
- Circular
- Current Rating :
- 3A
- Max Voltage Rating (AC) :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Economy Power 2.5
- Termination :
- Kinked Pin, Solder
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Fastening Type :
- Friction Lock
- Depth :
- 6.4mm
- Contact Material :
- Brass
- Operating Supply Voltage :
- 250V
- Published :
- 2004
- Plating Thickness :
- 2.03μm
- Width :
- 6.4mm
- Orientation :
- Vertical
- Contact Length - Mating :
- 0.141 3.60mm
- Voltage - Rated :
- 250VAC
- Connector Type :
- Header
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -55°C~105°C
- Style :
- Board to Cable/Wire
- Contact Finish - Mating :
- Tin
- Contact Current Rating :
- 4.2A
- Sealable :
- No
- Gender :
- Male
- Contact Length - Post :
- 0.134 3.40mm
- PCB Mount Retention :
- With
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Length - Tail :
- 3.4mm
- ELV :
- Compliant
- Contact Type :
- Male Pin
- PCB Mount Alignment :
- Without
- Number of Rows :
- 1
- Insulation Height :
- 0.346 8.80mm
- Pitch - Mating :
- 0.098 2.50mm
- Number of Positions :
- 5
- Applications :
- General Purpose, Industrial, Lighting
- Housing Color :
- Natural, White
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 2132415-5
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 5-Position Board to Cable/Wire 0.346 8.80mm Height
2132415-5 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Economy Power 2.5 belongs to the Economy Power 2.5 Series.In addition to General Purpose, Industrial, Lighting, there are other possible applications for the device.There is a Through Hole mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -55°C~105°C.
2132415-5 Features
Economy Power 2.5 series
2132415-5 Applications
There are a lot of TE Connectivity AMP Connectors
2132415-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
