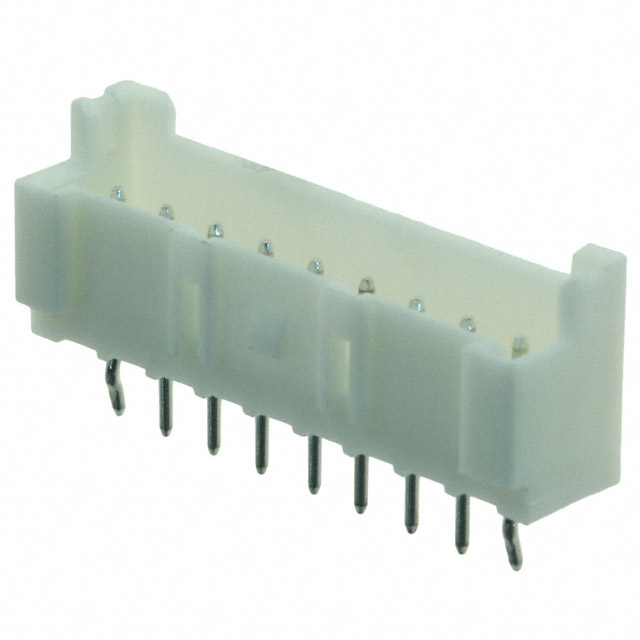

2132230-9
Or copy the link below:
- Mfr.Part #
- 2132230-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 9POS 2.5MM
- Stock
- 19,503
- In Stock ：
- 19,503
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- 4.2A
- Gender :
- Male
- Current Rating :
- 3A
- Contact Plating :
- Tin
- Number of Positions :
- 9
- Mating Post Length :
- 3.6mm
- ELV :
- Compliant
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Operating Temperature :
- -55°C~105°C
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Contact Finish - Mating :
- Tin
- Published :
- 2010
- Max Voltage Rating (AC) :
- 250V
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Length - Post :
- 0.134 3.40mm
- Min Operating Temperature :
- -55°C
- Contact Shape :
- Circular
- Length :
- 7.5mm
- Insulation Color :
- White
- Radiation Hardening :
- No
- Termination :
- Kinked Pin, Solder
- Shrouding :
- Shrouded - 4 Wall
- Housing Material :
- Nylon
- Pitch :
- 2.5mm
- Housing Color :
- Natural, White
- Pitch - Mating :
- 0.098 2.50mm
- Mating Retention :
- With
- Width :
- 6.4mm
- Sealable :
- No
- Length - Tail :
- 3.4mm
- Contact Style :
- Straight
- PCB Mount Retention :
- With
- Series :
- Economy Power 2.5
- Height :
- 8.8mm
- PCB Mounting Orientation :
- Vertical
- Contact Current Rating :
- 4.2A
- Applications :
- General Purpose, Industrial, Lighting
- Feature :
- Board Guide
- Mount :
- Through Hole
- Plating Thickness :
- 2.03μm
- Number of Contacts :
- 9
- RoHS Status :
- RoHS Compliant
- PCB Mount Alignment :
- With
- Contact Length - Mating :
- 0.122 3.10mm
- Style :
- Board to Cable/Wire
- Contact Type :
- Male Pin
- Insulation Height :
- 0.346 8.80mm
- Max Operating Temperature :
- 105°C
- Number of Rows :
- 1
- Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- COPPER ALLOY
- Contact Finish - Post :
- Tin
- Flammability Rating :
- UL94 V-0
- Fastening Type :
- Friction Lock
- Mounting Type :
- Through Hole
- PCB Thickness :
- 1.6002mm
- REACH SVHC :
- No SVHC
- Packaging :
- Bulk
- Factory Lead Time :
- 21 Weeks
- Orientation :
- Vertical
- Operating Supply Voltage :
- 250V
- Voltage - Rated :
- 250VAC
- Contact Gender :
- Male
- Number of Positions Loaded :
- All
- Color :
- Natural
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Datasheets
- 2132230-9
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 9-Position Board to Cable/Wire 0.346 8.80mm Height
2132230-9 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Economy Power 2.5 Series.If the temperature is below 105°C, it's best to use it.-55°C is the minimum temperature for this device.There are a variety of possible applications for this device, including General Purpose, Industrial, Lighting.Several benefits come from the Board Guide feature.There is a mounting hole at Through Hole.It runs on 250V voltage.Devices operate at -55°C~105°C operating temperatures.
2132230-9 Features
Economy Power 2.5 series
2132230-9 Applications
There are a lot of TE Connectivity AMP Connectors
2132230-9 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
