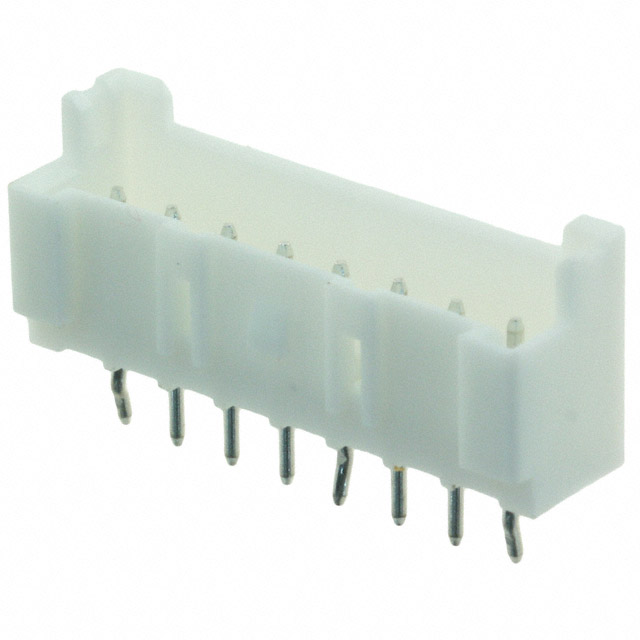

2132230-8
Or copy the link below:
- Mfr.Part #
- 2132230-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2.5MM
- Stock
- 1,736
- In Stock ：
- 1,736
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Min Operating Temperature :
- -55°C
- Orientation :
- Vertical
- Pitch :
- 2.5mm
- Radiation Hardening :
- No
- Mating Post Length :
- 3.6mm
- Operating Supply Voltage :
- 250V
- Termination :
- Kinked Pin, Solder
- Length :
- 24.892mm
- Contact Type :
- Male Pin
- Housing Material :
- Nylon
- PCB Mount Retention :
- With
- Fastening Type :
- Friction Lock
- REACH SVHC :
- No SVHC
- Mount :
- Through Hole
- Applications :
- General Purpose, Industrial, Lighting
- Operating Temperature :
- -55°C~105°C
- Contact Style :
- Straight
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Contact Shape :
- Circular
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Contact Finish - Post :
- Tin
- PCB Mounting Orientation :
- Vertical
- PCB Thickness :
- 1.6002mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Current Rating (Amps) :
- 4.2A
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Mating Retention :
- With
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Length - Tail :
- 3.4mm
- Plating :
- Tin
- Factory Lead Time :
- 21 Weeks
- Gender :
- Male
- Housing Color :
- Natural, White
- Style :
- Board to Cable/Wire
- Lead Free :
- Lead Free
- Series :
- Economy Power 2.5
- Published :
- 2004
- Number of Positions :
- 8
- Contact Finish - Mating :
- Tin
- PCB Mount Alignment :
- With
- Plating Thickness :
- 2.03μm
- Flammability Rating :
- UL94 V-0
- Max Voltage Rating (AC) :
- 250V
- Contact Length - Post :
- 0.134 3.40mm
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.122 3.10mm
- Sealable :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Guide
- Current Rating :
- 3A
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.346 8.80mm
- Number of Positions Loaded :
- All
- Contact Plating :
- Tin
- Connector Type :
- Header
- Number of Rows :
- 1
- Insulation Color :
- White
- Number of Contacts :
- 8
- Contact Material :
- COPPER ALLOY
- Contact Current Rating :
- 4.2A
- Contact Gender :
- Male
- ELV :
- Compliant
- Pitch - Mating :
- 0.098 2.50mm
- Voltage - Rated :
- 250VAC
- Color :
- Natural
- Max Operating Temperature :
- 105°C
- Width :
- 6.4mm
- Depth :
- 6.4mm
- Height :
- 8.8mm
- Datasheets
- 2132230-8
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 8-Position Board to Cable/Wire 0.346 8.80mm Height
2132230-8 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Economy Power 2.5 Series.Use it when the temperature is below 105°C.Temperatures below -55°C are required for this device to operate.The device may be used for the following applications: General Purpose, Industrial, Lighting.It is more powerful in many ways due to its Board Guide feature.It is mounted by Through Hole.Its operating supply voltage is 250V.It operates at an operating temperature of -55°C~105°C.
2132230-8 Features
Economy Power 2.5 series
2132230-8 Applications
There are a lot of TE Connectivity AMP Connectors
2132230-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
