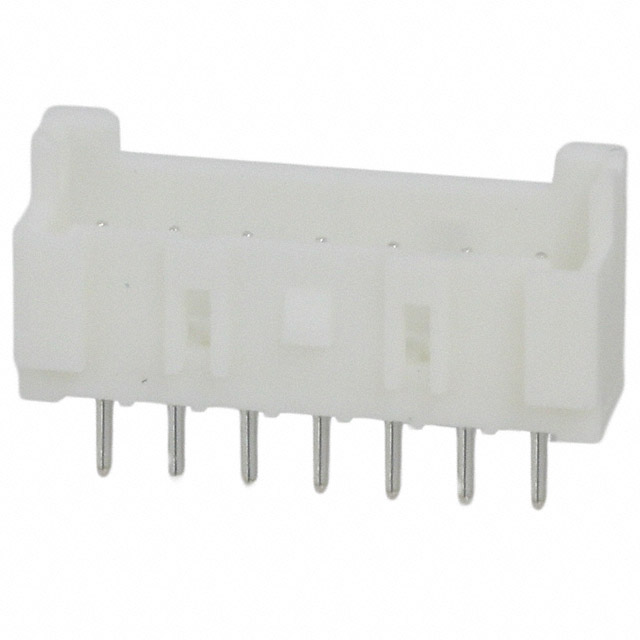

2132230-7
Or copy the link below:
- Mfr.Part #
- 2132230-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 2.5MM
- Stock
- 2,188
- In Stock ：
- 2,188
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mount :
- Through Hole
- Lead Free :
- Lead Free
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- PCB Mount Retention :
- With
- Insulation Height :
- 0.346 8.80mm
- ELV :
- Compliant
- Max Voltage Rating (AC) :
- 250V
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Current Rating (Amps) :
- 4.2A
- REACH SVHC :
- No SVHC
- Published :
- 2004
- RoHS Status :
- RoHS Compliant
- Series :
- Economy Power 2.5
- Housing Material :
- Nylon
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Applications :
- General Purpose, Industrial, Lighting
- Termination :
- Kinked Pin, Solder
- Style :
- Board to Cable/Wire
- Number of Contacts :
- 7
- Voltage - Rated :
- 250VAC
- PCB Mount Alignment :
- With
- Operating Supply Voltage :
- 250V
- Depth :
- 6.4mm
- Pitch :
- 2.5mm
- Flammability Rating :
- UL94 V-0
- Plating :
- Tin
- Mating Retention :
- With
- Contact Length - Post :
- 0.134 3.40mm
- Insulation Color :
- White
- Packaging :
- Bulk
- Contact Gender :
- Male
- Housing Color :
- Natural, White
- Radiation Hardening :
- No
- Fastening Type :
- Friction Lock
- Number of Positions :
- 7
- Number of Rows :
- 1
- Width :
- 6.4mm
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Thickness :
- 1.6002mm
- Mating Post Length :
- 3.6mm
- Contact Finish - Mating :
- Tin
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Plating Thickness :
- 2.032μm
- Contact Type :
- Male Pin
- Height :
- 8.8mm
- Feature :
- Board Guide
- Contact Current Rating :
- 4.2A
- Current Rating :
- 3A
- Contact Style :
- Straight
- Connector Type :
- Header
- Contact Plating :
- Tin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Contact Shape :
- Circular
- Operating Temperature :
- -55°C~105°C
- Contact Finish - Post :
- Tin
- Contact Length - Mating :
- 0.122 3.10mm
- Pitch - Mating :
- 0.098 2.50mm
- Min Operating Temperature :
- -55°C
- Gender :
- Male
- Sealable :
- No
- Length - Tail :
- 3.4mm
- Orientation :
- Vertical
- Length :
- 22.5mm
- Factory Lead Time :
- 21 Weeks
- PCB Mounting Orientation :
- Vertical
- Color :
- Natural
- Max Operating Temperature :
- 105°C
- Datasheets
- 2132230-7
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 7-Position Board to Cable/Wire 0.346 8.80mm Height
2132230-7 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Economy Power 2.5 belongs to the Economy Power 2.5 Series.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, Industrial, Lighting, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide feature.There is a Through Hole mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -55°C~105°C.
2132230-7 Features
Economy Power 2.5 series
2132230-7 Applications
There are a lot of TE Connectivity AMP Connectors
2132230-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
