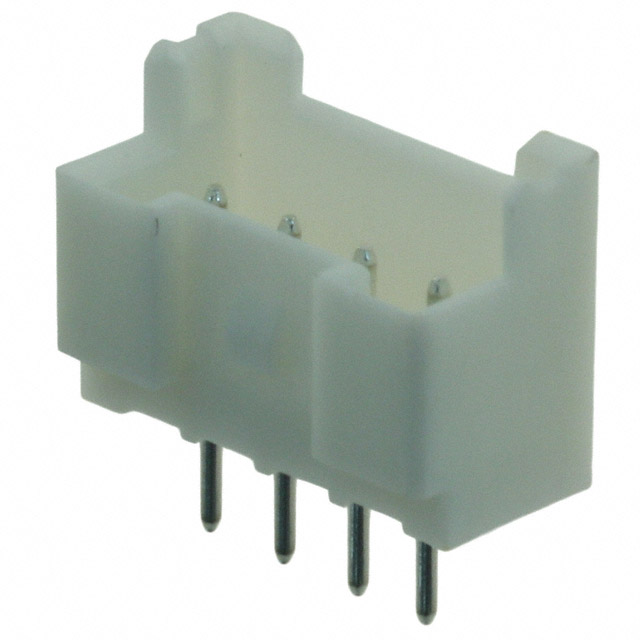

2132230-4
Or copy the link below:
- Mfr.Part #
- 2132230-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.5MM
- Stock
- 16,966
- In Stock ：
- 16,966
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Feature :
- Board Guide
- Gender :
- Male
- Orientation :
- Vertical
- Contact Length - Mating :
- 0.122 3.10mm
- Filter Feature :
- No
- Contact Shape :
- Circular
- Mount :
- Through Hole
- Operating Temperature :
- -55°C~105°C
- IEC Conformance :
- No
- Insertion Force-Max :
- .8896 N
- Published :
- 2010
- Insulation Color :
- White
- MIL Conformance :
- No
- Reliability :
- COMMERCIAL
- Color :
- Natural
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.098 2.50mm
- Applications :
- General Purpose, Industrial, Lighting
- Current Rating :
- 3A
- Contact Finish - Mating :
- Tin
- Number of Rows :
- 1
- Series :
- Economy Power 2.5
- Housing Material :
- Nylon
- Insulation Height :
- 0.346 8.80mm
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Material :
- COPPER ALLOY
- Voltage - Rated :
- 250VAC
- REACH SVHC :
- No SVHC
- Withdrawl Force-Min :
- 8.896 N
- Depth :
- 6.4mm
- Reference Standard :
- UL
- Mixed Contacts :
- No
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 15mm
- Length - Tail :
- 3.4mm
- Insulation Resistance :
- 500000000Ohm
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Operating Supply Voltage :
- 250V
- Mating Post Length :
- 3.6068mm
- Contact Resistance :
- 20mOhm
- PCB Mount Alignment :
- With
- Mounting Type :
- Through Hole
- Number of Positions :
- 4
- Contact Style :
- Straight
- Terminal Pitch :
- 2.5mm
- Contact Current Rating :
- 4.2A
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 21 Weeks
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Termination :
- Kinked Pin, Solder
- Circuit Application :
- Power
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Friction Lock
- Flammability Rating :
- UL94 V-0
- Housing Color :
- Natural, White
- Contact Length - Post :
- 0.134 3.40mm
- Width :
- 6.4mm
- DIN Conformance :
- No
- Plating Thickness :
- 2.03μm
- Height :
- 8.7884mm
- ELV :
- Compliant
- Number of Conductors :
- ONE
- PCB Thickness :
- 1.6002mm
- Sealable :
- No
- Contact Arrangement :
- S0P5
- Max Voltage Rating (AC) :
- 250V
- Body Breadth :
- 0.252 inch
- Lead Free :
- Lead Free
- Additional Feature :
- POLARIZED, LATCHED
- Datasheets
- 2132230-4
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.346 8.80mm Height
2132230-4 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Economy Power 2.5 Series.Among other features are POLARIZED, LATCHED, to name only a few.The device may be used for the following applications: General Purpose, Industrial, Lighting.It is more powerful in many ways due to its Board Guide feature.It is mounted by Through Hole.Its operating supply voltage is 250V.It operates at an operating temperature of -55°C~105°C.
2132230-4 Features
Economy Power 2.5 series
2132230-4 Applications
There are a lot of TE Connectivity AMP Connectors
2132230-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
