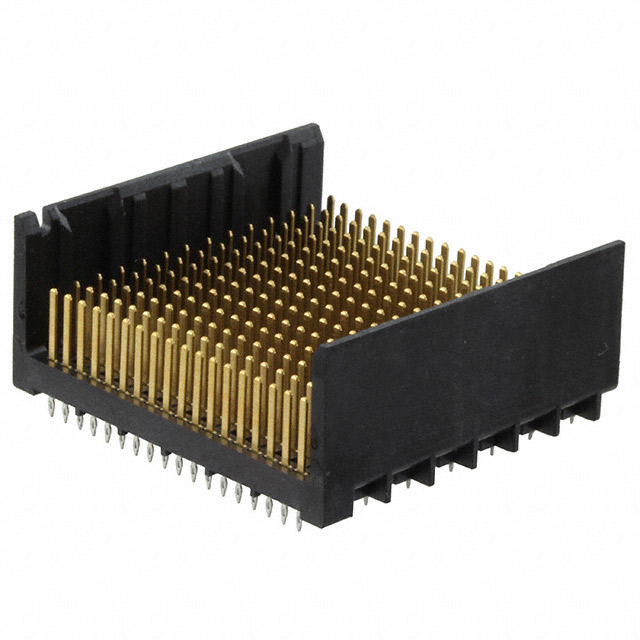

2132012-2
Or copy the link below:
- Mfr.Part #
- 2132012-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 252POS PCB
- Stock
- 2,723
- In Stock ：
- 2,723
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Plating :
- Gold, Tin
- Plating Thickness :
- 760 nm
- Number of Positions :
- 252
- Data Rate :
- 25 Gbps
- Color :
- Black
- Factory Lead Time :
- 15 Weeks
- Contact Current Rating :
- 750mA
- Connector Type :
- Header, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Thickness :
- 990.6μm
- Mounting Type :
- Through Hole, Right Angle
- Orientation :
- Vertical
- Length - Tail :
- 1.2mm
- Height :
- 11.95mm
- Operating Temperature :
- -55°C~ 85°C
- Number of Positions Loaded :
- All
- Number of Rows :
- 18
- Housing Material :
- Polymer
- Underplate Material :
- Nickel
- Material Flammability Rating :
- UL94 V-0
- Hole Diameter :
- 381 µm
- Differential Signaling :
- yes
- Contact Finish :
- Gold
- Number of Signal Positions :
- 168
- Number of Ground Positions :
- 84
- Series :
- Impact
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Row Spacing :
- 1.35 mm
- Width :
- 28.9mm
- Packaging :
- Bulk
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Make First / Break Last :
- No
- Voltage - Rated :
- 120V
- Length :
- 26.4922mm
- Published :
- 2013
- Termination :
- Press-Fit
- Pitch :
- 1.905mm
- Flammability Rating :
- UL94 V-0
- Number of Columns :
- 14
- Differential Pairs per Column :
- 6
- RoHS Status :
- Non-RoHS Compliant
- Datasheets
- 2132012-2
Impact Series Header, Male Pins Press-Fit Gold Black 50.0μin 1.27μm 252 Positions Pitch: 1.905mm -55°C~ 85°C Bulk Through Hole, Right Angle
2132012-2 Overview
Currently, it is packaged in Header, Male Pins.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the Impact Series, it belongs to the range of products of that series.-55°C~ 85°C Operating Temperature is the default operating temperature for the device.
2132012-2 Features
Impact series
2132012-2 Applications
There are a lot of TE Connectivity AMP Connectors
2132012-2 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
