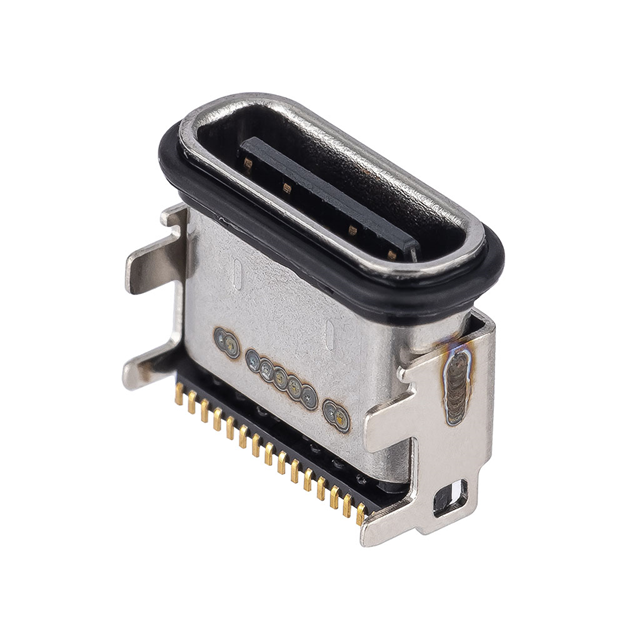

2130830005

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Termination Style :

SMD/SMT

Body Orientation :

RIGHT ANGLE

Mounting Type :

Surface Mount

Current Rating :

5 A

Mounting Feature :

Horizontal

Component Type :

Receptacle

Maximum Operating Temperature :

+ 85 C

Standard :

USB 2.0

Color :

Black

Orientation :

RIGHT ANGLE

Mating Cycles :

10000

Base Product Number :

213083

Contact Material :

COPPER ALLOY

Product Status :

Active

Contact Plating :

Gold

Material Flammability Rating :

UL94 V-0

Ingress Protection :

IPX8 - Waterproof

Connector Type :

USB-C (USB TYPE-C)

Contact Finish :

Gold

Mounting Angle :

RIGHT ANGLE

Number of Rows :

1

Shielding :

Shielded

Minimum Operating Temperature :

- 40 C

Gender :

FEMALE

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Operating Temperature :

-40°C ~ 85°C

Voltage - Rated :

30VDC

Specifications :

USB 2.0

Voltage Rating :

30 VAC, 30 VDC

RoHS :

Details

Shielded :

No

Product :

USB Type C Connectors

Series :

213083

Insulation Color :

Black

Number of Contacts :

16 Contact

Termination :

Solder

Features :

Board Guide

Shell/Shielding Material :

Steel, Stainless

Shield Type :

Full Shield

Current Rating (Amps) :

5A

Mounting Style :

SMD/SMT

Termination Method :

Surface Mount

Number of Ports :

1

Panel Mount :

yes

Type :

Type C
