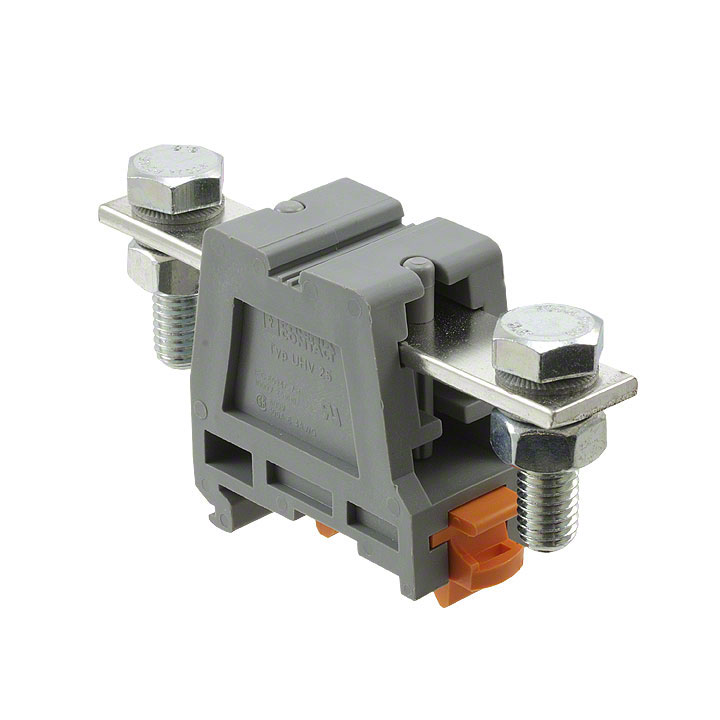

2130004

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Weight :

101.679987g

ECCN Code :

EAR99

Length :

88mm

Number of Decks :

1

Termination :

Screw

Voltage :

600V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Wire Gauge or Range - mm² :

6-25mm2

Number of Rows :

2

Wire Gauge (Min) :

4 AWG

Published :

2010

Current Rating :

101A

Wire Gauge (Max) :

6 AWG

Max Current Rating :

101A

Type :

Feed Through

Color :

Gray

RoHS Status :

RoHS Compliant

Mount :

CABLE

Voltage - IEC :

1000V

Safety Approval :

UL

Termination Style :

Bolt and Nut

Material - Insulation :

Polyamide (PA), Nylon, Glass Filled

Stripping Length :

21mm

Voltage - Rated :

1kV

Pbfree Code :

yes

Series :

CLIPLINE UHV

Material Flammability Rating :

UL94 HB

Number of Levels :

1

Wire Gauge or Range - AWG :

4-6 AWG

Flammability Rating :

UL94 HB

Additional Feature :

PA-F, 94V-HB

Housing Color :

Grey

Current :

85A

Lead Free :

Lead Free

Factory Lead Time :

4 Weeks

Width :

26mm

Max Supply Voltage :

1kV

Housing Material :

Polyamide

Terminal Width :

26.0mm

Number of Ways :

2

Depth :

26mm

Reach Compliance Code :

Unknown
