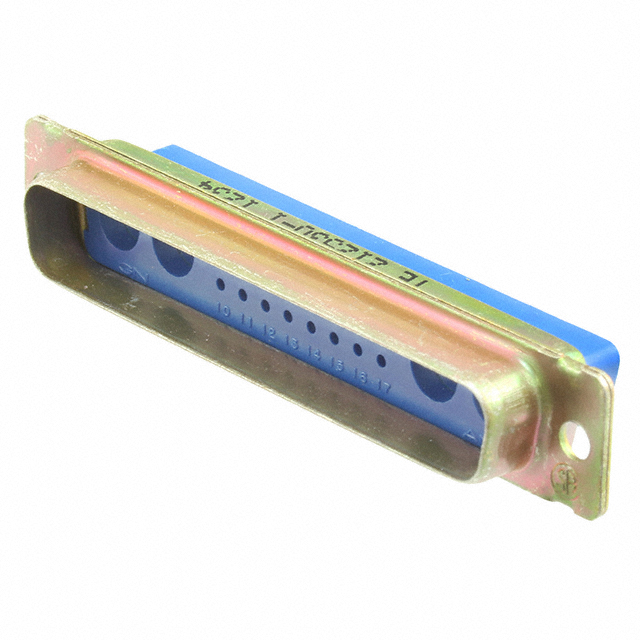

212530-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Lead Free :

Contains Lead

Orientation :

Straight

Packaging :

Bulk

Connector Type :

Plug for Male Contacts

Published :

2012

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Dielectric Material :

Polyester

Option :

GENERAL PURPOSE

Sealable :

No

Series :

AMPLIMITE 109

Wire Gauge (Min) :

8 AWG

Wire Gauge (Max) :

18 AWG

Shell Size, Connector Layout :

4 DC C - 21C4

Shell Material :

Steel

IEC Conformance :

No

DIN Conformance :

No

Gender :

Male

Mounting Type :

Free Hanging (In-Line)

Mount :

Cable, Free Hanging

Color :

Blue

Operating Temperature :

-50°C~125°C

Current Rating :

7.5A

MIL Conformance :

No

Termination :

Solder

Number of Rows :

2

ELV :

Non-Compliant

Factory Lead Time :

14 Weeks

Flange Feature :

Housing/Shell (Unthreaded)

RoHS Status :

Non-RoHS Compliant

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Connector Style :

D-Sub, Combo

Filter Feature :

No

Hole Diameter :

3.048 mm

Contact Type :

Signal and Coax or Power

Mixed Contacts :

yes

UL Flammability Code :

94V-0

Note :

Contacts Not Included

Shell Material, Finish :

Steel, Cadmium Plated

Plating :

Cadmium

Depth :

14.45mm

Number of Contacts :

21

Feature :

Grounding Indents

Number of Positions :

21 (17 + 4 Coax or Power)

Length :

69.31mm

Package / Case :

300

Contact Style :

Power

Empty Shell :

yes
