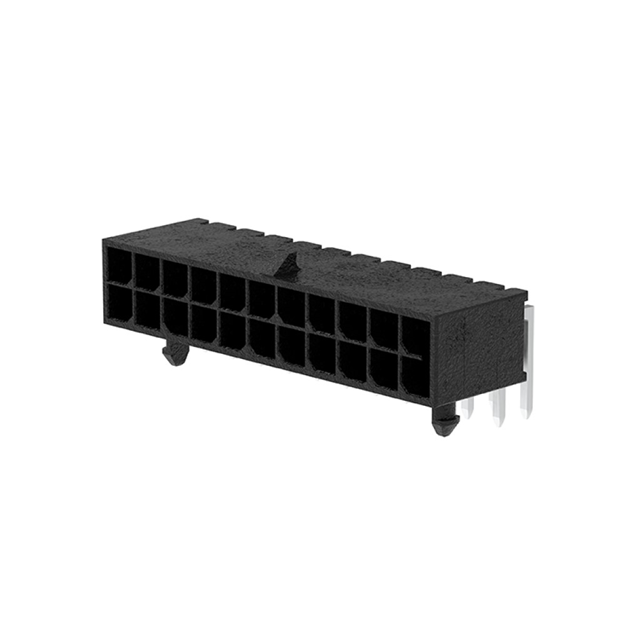

2125282000

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Voltage Rating :

600 VAC, 600 VDC

Contact Length - Mating :

-

Overall Contact Length :

-

Product :

Headers

Termination Style :

Solder Pin

Series :

212528

Package :

Tray

Current Rating (Amps) :

Varies by Wire Gauge

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Ingress Protection :

-

Contact Shape :

Square

Housing Material :

Liquid Crystal Polymer (LCP)

Base Product Number :

212528

Contact Gender :

Socket (Female)

Features :

Board Lock

Mounting Type :

Through Hole, Right Angle

Termination Post Length :

3.18 mm

Number of Positions :

20 Position

Maximum Operating Temperature :

+ 85 C

Fastening Type :

Locking Ramp

Mounting Angle :

RIGHT ANGLE

Termination :

Solder

Flammability Rating :

UL 94 V-0

Housing Color :

Black

Number of Positions Loaded :

All

Contact Finish - Mating :

Tin

Row Spacing - Mating :

0.118 (3.00mm)

Contact Length - Post :

0.125 (3.18mm)

Shrouded :

yes

Insulation Height :

0.291 (7.40mm)

Operating Temperature :

-40°C ~ 105°C

Packaging :

Tray

Shrouding :

Shrouded - 4 Wall

Tradename :

Micro-Fit+

Pitch - Mating :

0.118 (3.00mm)

Pitch :

3 mm

Connector Type :

Header

Product Status :

Active

Applications :

-

Contact Material :

COPPER ALLOY

Contact Type :

Male Pin

Material Flammability Rating :

UL94 V-0

Mated Stacking Heights :

-

Insulation Color :

Black

Row Spacing :

3 mm

Contact Finish Thickness - Mating :

-

Contact Finish Thickness - Post :

-

Minimum Operating Temperature :

- 40 C

RoHS :

Details

Current Rating :

12.5 A

Style :

Board to Cable/Wire

Contact Finish - Post :

Tin

Number of Rows :

2 Row

Orientation :

RIGHT ANGLE

Mounting Style :

Board Lock

Contact Plating :

Tin
