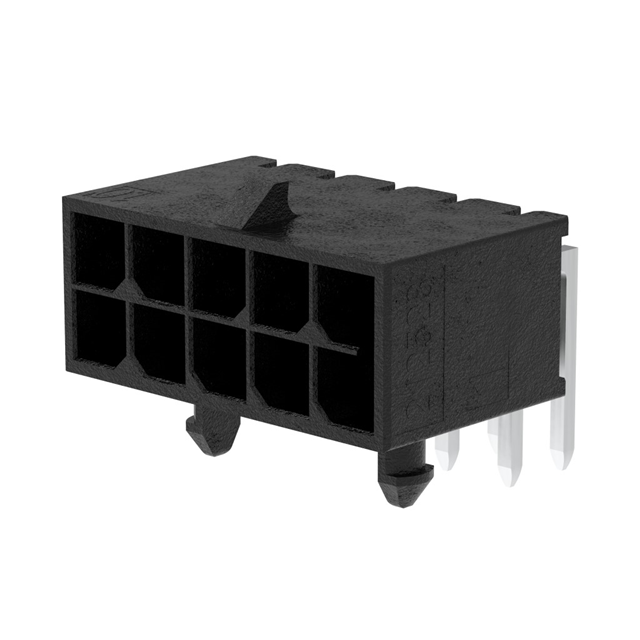

2125281000

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Flammability Rating :

UL 94 V-0

Fastening Type :

Locking Ramp

Minimum Operating Temperature :

- 40 C

Contact Material :

COPPER ALLOY

Overall Contact Length :

-

Connector Type :

Header

Row Spacing - Mating :

0.118 (3.00mm)

Contact Resistance Max :

10(mohm)

Voltage Rating Max :

600VDC/600VAC

Number of Positions Loaded :

All

Termination Post Length :

3.18 mm

Product Status :

Active

Contact Finish - Mating :

Tin

Contact Length - Mating :

-

Contact Length - Post :

0.125 (3.18mm)

Current Rating :

12.5 A

Features :

Board Lock

Product Depth (mm) :

12.18(mm)

Insulation Height :

0.291 (7.40mm)

Current Rating (Amps) :

Varies by Wire Gauge

Shrouding :

Shrouded - 4 Wall

Operating Temp Range :

-40C to 105C

Contact Gender :

Socket (Female)

Number of Positions :

10 Position

Voltage Rating :

600 VAC, 600 VDC

Tradename :

Micro-Fit+

Shrouded :

yes

Pitch (mm) :

3(mm)

Body Orientation :

RIGHT ANGLE

Applications :

-

Mounting Angle :

RIGHT ANGLE

Termination Style :

Solder Pin

Current Rating (Max) :

12.5/Contact(A)

Package :

Bulk

Product :

Headers

Contact Type :

Male Pin

Mounting Type :

Through Hole, Right Angle

Gender :

HDR

Ingress Protection :

-

Base Product Number :

212528

Pitch - Mating :

0.118 (3.00mm)

Mounting Style :

Board Lock

Number of Contacts :

10(POS)

Termination Method :

Solder

Insulation Color :

Black

Material Flammability Rating :

UL94 V-0

Number of Rows :

2 Row

Contact Plating :

Tin

Packaging :

Tray

Type :

Wire to Board

Housing Color :

Black

Housing Material :

Liquid Crystal Polymer (LCP)

Number of Contact Rows :

2

RoHS :

Details

Orientation :

RIGHT ANGLE

Operating Temperature :

-40°C ~ 105°C

Mated Stacking Heights :

-

Pitch :

3 mm

Contact Shape :

Square

Product Length (mm) :

15.85(mm)

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish - Post :

Tin

Maximum Operating Temperature :

+ 85 C

Contact Finish Thickness - Post :

-

Style :

Board to Cable/Wire

Contact Finish Thickness - Mating :

-

Product Height (mm) :

8.8(mm)

Termination :

Solder

Row Spacing :

3 mm

Series :

212528
