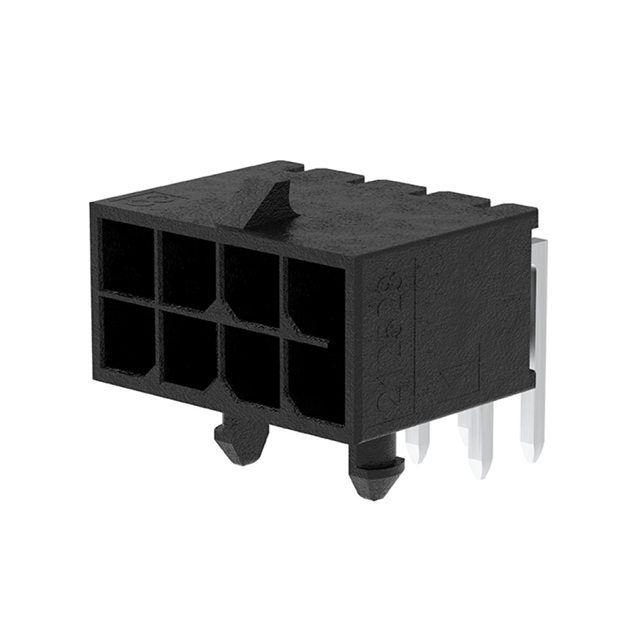

2125280801

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Positions :

8 Position

Current Rating :

12.5 A

Overall Contact Length :

-

Pitch :

3 mm

Termination Post Length :

3.18 mm

Features :

Board Lock

Mounting Angle :

RIGHT ANGLE

Contact Type :

Male Pin

Insulation Color :

Black

Voltage Rating :

600 VAC, 600 VDC

Current Rating (Amps) :

Varies by Wire Gauge

Contact Finish - Mating :

Gold

Contact Length - Mating :

-

Flammability Rating :

UL 94 V-0

Termination :

Solder

Contact Material :

COPPER ALLOY

Tradename :

Micro-Fit+

Package :

Tray

Contact Finish - Post :

Tin

Contact Length - Post :

0.125 (3.18mm)

Shrouded :

yes

Number of Positions Loaded :

All

Mated Stacking Heights :

-

Row Spacing - Mating :

0.118 (3.00mm)

Ingress Protection :

-

Style :

Board to Cable/Wire

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Connector Type :

Header

Contact Finish Thickness - Post :

-

Maximum Operating Temperature :

+ 85 C

Fastening Type :

Locking Ramp

Applications :

-

Orientation :

RIGHT ANGLE

RoHS :

Details

Series :

212528

Mounting Style :

Board Lock

Packaging :

Tray

Shrouding :

Shrouded - 4 Wall

Product Status :

Active

Housing Color :

Black

Operating Temperature :

-40°C ~ 105°C

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.291 (7.40mm)

Product :

Headers

Minimum Operating Temperature :

- 40 C

Mounting Type :

Through Hole, Right Angle

Housing Material :

Liquid Crystal Polymer (LCP)

Contact Shape :

Square

Termination Style :

Solder Pin

Row Spacing :

3 mm

Contact Gender :

Socket (Female)

Contact Plating :

Gold

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Base Product Number :

212528

Number of Rows :

2 Row

Pitch - Mating :

0.118 (3.00mm)
