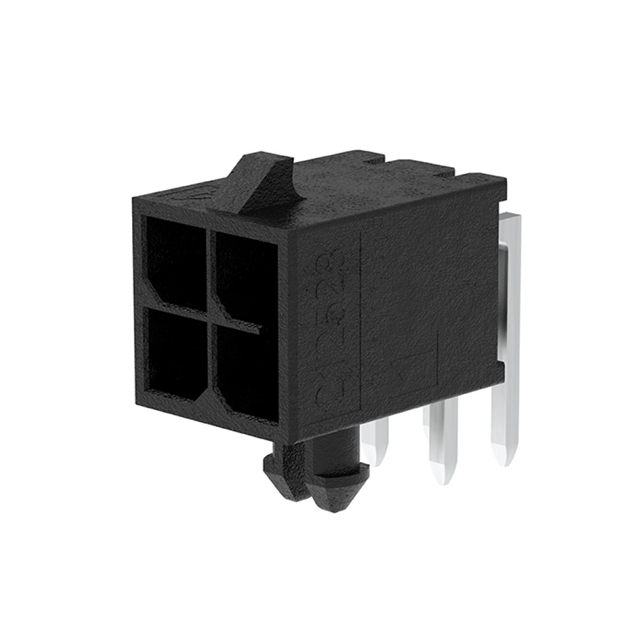

2125280401

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Plating :

Gold

Product :

Headers

Insulation Color :

Black

Contact Finish Thickness - Post :

-

Packaging :

Tray

Product Status :

Active

Series :

212528

Contact Type :

Male Pin

Termination :

Solder

Tradename :

Micro-Fit+

Contact Shape :

Square

Mounting Type :

Through Hole, Right Angle

Fastening Type :

Locking Ramp

Orientation :

RIGHT ANGLE

Termination Post Length :

3.18 mm

Flammability Rating :

UL 94 V-0

Insulation Height :

0.291 (7.40mm)

Number of Positions :

4 Position

Current Rating (Amps) :

Varies by Wire Gauge

Number of Positions Loaded :

All

Package :

Tray

Mounting Style :

Board Lock

Shrouding :

Shrouded - 4 Wall

Row Spacing - Mating :

0.118 (3.00mm)

Overall Contact Length :

-

Applications :

-

Contact Finish - Mating :

Gold

Housing Material :

Liquid Crystal Polymer (LCP)

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Pitch :

3 mm

Connector Type :

Header

Shrouded :

yes

Termination Style :

Solder Pin

Number of Rows :

2 Row

Contact Gender :

Socket (Female)

Housing Color :

Black

Base Product Number :

212528

Pitch - Mating :

0.118 (3.00mm)

Features :

Board Lock

Material Flammability Rating :

UL94 V-0

Contact Length - Post :

0.125 (3.18mm)

RoHS :

Details

Ingress Protection :

-

Mounting Angle :

RIGHT ANGLE

Style :

Board to Cable/Wire

Minimum Operating Temperature :

- 40 C

Contact Length - Mating :

-

Voltage Rating :

600 VAC, 600 VDC

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Operating Temperature :

-40°C ~ 105°C

Maximum Operating Temperature :

+ 85 C

Mated Stacking Heights :

-

Current Rating :

12.5 A

Row Spacing :

3 mm

Contact Material :

COPPER ALLOY

Contact Finish - Post :

Tin
