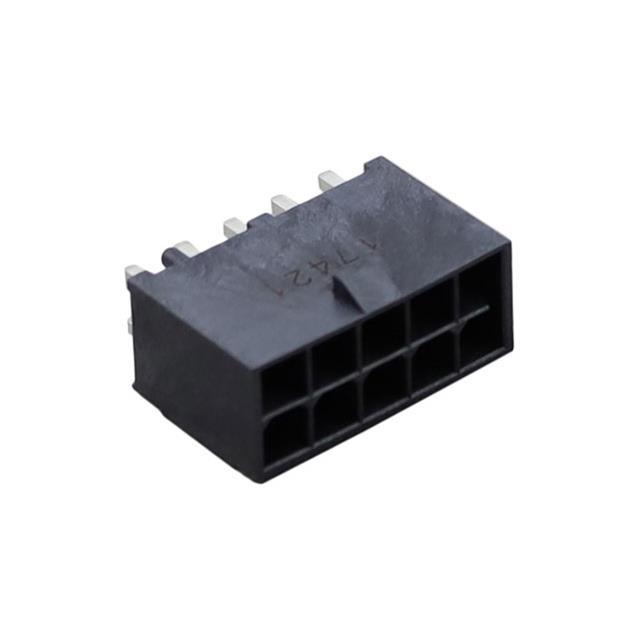

2125201010

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Body Orientation :

Vertical

Mated Stacking Heights :

-

Voltage Rating :

600 V

Contact Finish - Post :

Tin

Number of Positions Loaded :

All

Base Product Number :

212520

Overall Contact Length :

-

Ingress Protection :

-

Mounting Angle :

Straight

Number of Contacts :

10

Features :

Board Guide

Contact Finish Thickness - Post :

-

Package :

Tray

Tradename :

Mini-Fit Max

Minimum Operating Temperature :

- 40 C

Style :

Board to Cable/Wire

Material :

COPPER ALLOY

Current Rating :

20 A

Housing Color :

Black

Termination :

Solder

Insulation Material :

Liquid Crystal Polymer (LCP)

Packaging :

Tray

Maximum Operating Temperature :

+ 105 C

Termination Style :

Solder Pin

Pitch - Mating :

0.165 (4.20mm)

Applications :

-

Contact Type :

Male Pin

Insulation Height :

0.535 (13.60mm)

Product :

Headers

Number of Positions :

10 Position

Flammability Rating :

UL 94 V-0

Mounting Type :

Through Hole

Number of Rows :

2 Row

Row Spacing :

4.2 mm

Contact Shape :

Square

Pitch :

4.2 mm

Contact Material :

COPPER ALLOY

Contact Length - Mating :

-

Operating Temperature :

-40°C ~ 105°C

Contact Length - Post :

0.144 (3.66mm)

Insulation Color :

Black

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

Tin

Mounting Style :

PCB Mount

Connector Type :

Header

Contact Gender :

Socket (Female)

Current Rating (Amps) :

20A per Contact

Contact Finish Thickness - Mating :

-

Color :

Black

Series :

212520

Fastening Type :

Locking Ramp

Contact Plating :

Tin

RoHS :

Details

Product Status :

Active

Housing Material :

Liquid Crystal Polymer (LCP)

Row Spacing - Mating :

0.165 (4.20mm)
