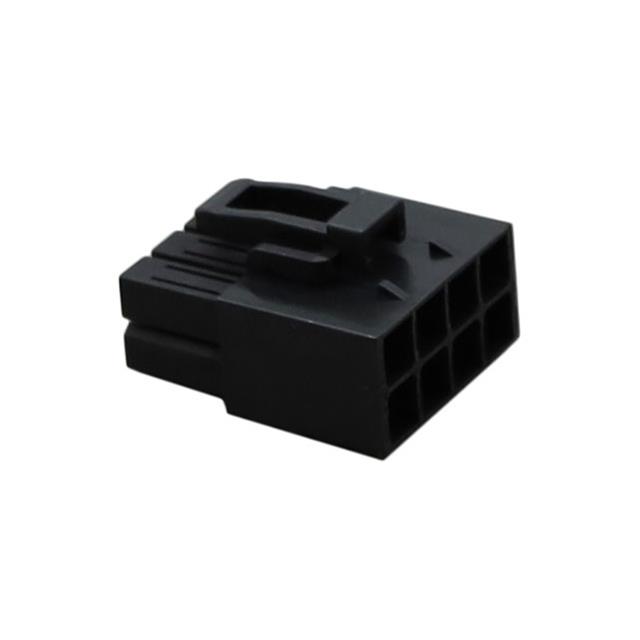

2125141008

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Mounting Style :

Cable Mount / Free Hanging

Note :

Contacts Not Included

Row Spacing :

4.2 mm

Package :

Bag

Product Status :

Active

Tradename :

Mini-Fit Max

For Use With :

Molex Mini-Fit Max 212515 Series Socket Crimp Terminals

Number of Positions :

8 Position

Fastening Type :

Latch Lock

Series :

212514

Housing Color :

Black

Maximum Operating Temperature :

+ 105 C

Body Orientation :

Straight

Product :

Wire Housings

Mounting Angle :

Straight

Connector Type :

Receptacle

Minimum Operating Temperature :

- 40 C

Color :

Black

Panel Mount :

No

Pitch :

4.2 mm

Contact Type :

Female Socket

Packaging :

Bulk

Base Product Number :

212514

Material :

Nylon

Contact Termination :

Crimp

Mounting Type :

Free Hanging (In-Line)

Flammability Rating :

UL 94 V-0

Housing Gender :

Receptacle

Number of Rows :

2 Row

Termination Style :

Crimp

Gender :

Receptacle

Features :

Glow Wire Compliant

Housing Material :

Nylon

Number of Contacts :

8

RoHS :

Details
