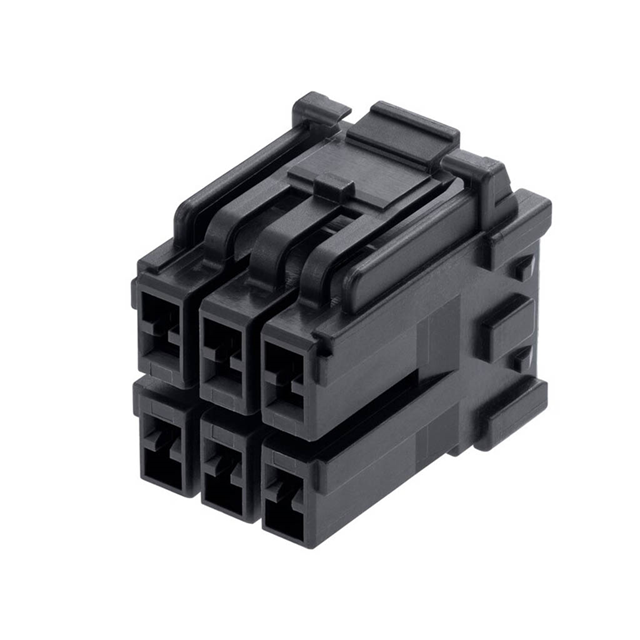

2122092061

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Package :

Bag

Note :

Contacts Not Included

Product Status :

Active

Series :

212209

Insulation Resistance :

1000 MOhms

Housing Color :

Black

Base Product Number :

212209

Pitch :

3.3 mm

Housing Material :

Polyamide (PA)

Number of Rows :

2 Row

Mounting Style :

Cable Mount / Free Hanging

RoHS :

Details

Current Rating :

6 A

Application :

Power, Wire-to-Board

Row Spacing :

0.130 (3.30mm)

Contact Type :

Female Socket

For Use With :

Molex CP-3.3 505607 and 503978 Series Socket Contacts

Product :

Wire Housings

Contact Termination :

Crimp

Housing Gender :

Receptacle

Packaging :

Bulk

Type :

Receptacle Housing

Termination Style :

Crimp

Fastening Type :

Latch Holder

Gender :

Receptacle

Mounting Angle :

Straight

Number of Positions :

6 Position

Panel Mount :

No

Color :

Black

Voltage Rating :

500 VAC/DC

Features :

Glow Wire Compliant

Maximum Operating Temperature :

+ 105 C

Flammability Rating :

UL 94 V-0

Minimum Operating Temperature :

- 40 C

Mounting Type :

Free Hanging (In-Line)

Tradename :

CP-3.3

Connector Type :

Receptacle
