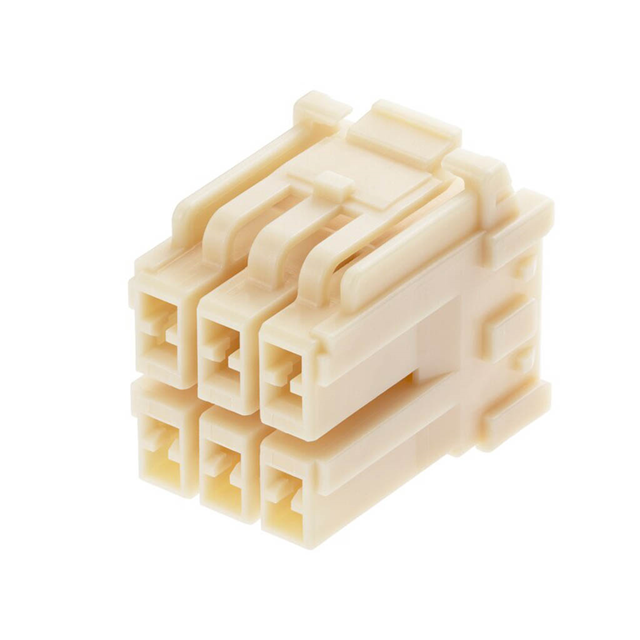

2122092040

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Gender :

Receptacle

Panel Mount :

No

Color :

Natural

Tradename :

CP-3.3

Mounting Angle :

Straight

Contact Type :

Female Socket

Number of Positions :

4 Position

Flammability Rating :

UL 94 V-0

Series :

212209

Number of Rows :

2 Row

Product Status :

Active

Note :

Contacts Not Included

Minimum Operating Temperature :

- 40 C

RoHS :

Details

Current Rating :

6 A

Features :

Glow Wire Compliant

Insulation Resistance :

1000 MOhms

Housing Gender :

Receptacle

Housing Material :

Polyamide (PA)

Termination Style :

Crimp

Fastening Type :

Latch Holder

Housing Color :

Natural

Package :

Bag

Mounting Style :

Cable Mount / Free Hanging

Mounting Type :

Free Hanging (In-Line)

Voltage Rating :

500 VAC/DC

Connector Type :

Receptacle

Contact Termination :

Crimp

For Use With :

Molex CP-3.3 505607 and 503978 Series Socket Contacts

Packaging :

Bulk

Pitch :

3.3 mm

Maximum Operating Temperature :

+ 105 C

Row Spacing :

0.130 (3.30mm)

Product :

Wire Housings

Type :

Receptacle Housing

Application :

Power, Wire-to-Board

Base Product Number :

212209
