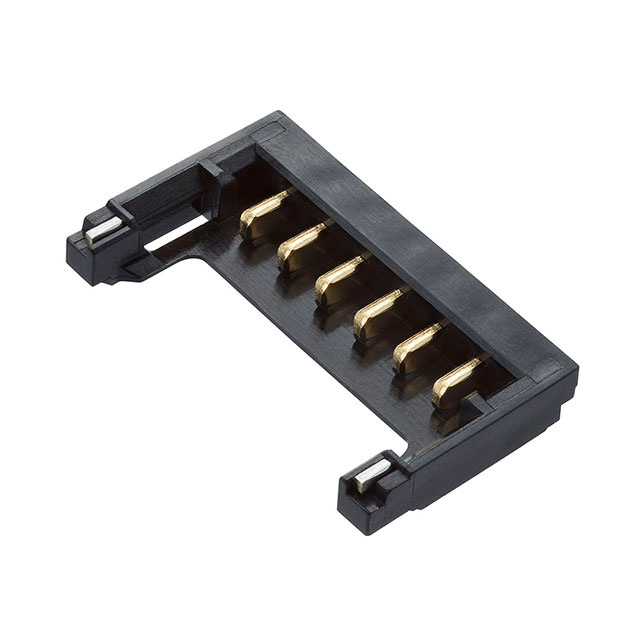

2121340006

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Positions Loaded :

All

Number of Positions :

6 Position

Housing Material :

Polyamide (PA)

Operating Temperature :

-40°C ~ 105°C

Fastening Type :

Friction Lock

Contact Finish Thickness - Post :

-

Insulation Height :

0.047 (1.20mm)

Product :

Headers

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Maximum Operating Temperature :

+ 105 C

Minimum Operating Temperature :

- 40 C

Pitch - Mating :

0.039 (1.00mm)

Termination Style :

Solder

Type :

Pico-EZmate Plus PCB Header

Housing Gender :

PLUG

Row Spacing - Mating :

-

Contact Finish - Mating :

Gold

Contact Plating :

Gold

Shrouding :

Shrouded - 3 Wall

Insulation Color :

Black

Orientation :

Vertical

Current Rating :

2.8 A

Housing Color :

Black

Tradename :

Pico-EZmate Plus

Overall Contact Length :

-

RoHS :

Details

Base Product Number :

212134

Product Status :

Active

Current Rating (Amps) :

Varies by Wire Gauge

Style :

Board to Cable/Wire

Mounting Type :

Surface Mount, Right Angle

Contact Finish - Post :

Gold

Voltage Rating :

50 V

Pitch :

1 mm

Features :

Solder Retention

Applications :

-

Mounting Angle :

Straight

Contact Length - Post :

-

Contact Length - Mating :

-

Mated Stacking Heights :

-

Series :

212134

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Contact Material :

COPPER ALLOY

Number of Rows :

1 Row

Ingress Protection :

-

Contact Type :

Tab

Contact Shape :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Packaging :

Cut Tape

Connector Type :

PLUG

Termination :

Solder

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
