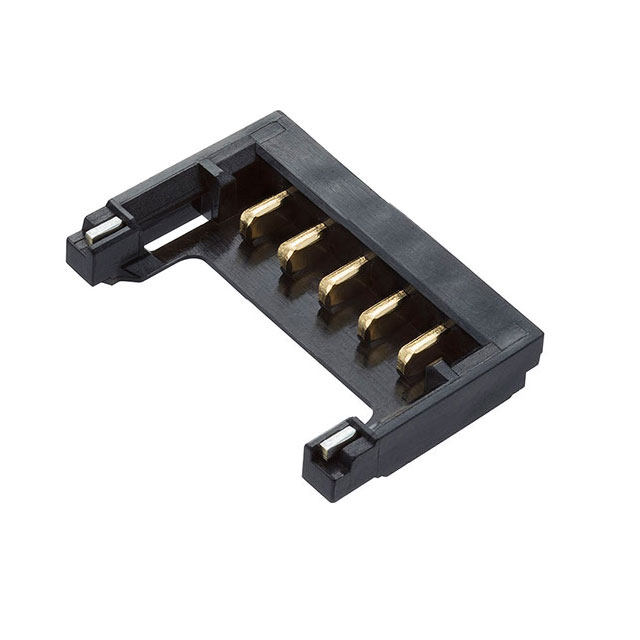

2121340005

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Housing Material :

Polyamide (PA)

Insulation Height :

0.047 (1.20mm)

Contact Finish Thickness - Post :

-

RoHS :

Details

Minimum Operating Temperature :

- 40 C

Packaging :

Reel

Voltage Rating :

50 VAC/VDC

Pitch :

1 mm

Termination Style :

Solder

Number of Positions :

5 Position

Series :

212134

Contact Plating :

Gold

Contact Material :

COPPER ALLOY

Fastening Type :

Friction Lock

Ingress Protection :

-

Termination :

Solder

Style :

Board to Cable/Wire

Overall Contact Length :

-

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Mounting Type :

Surface Mount, Right Angle

Product :

Headers

Orientation :

Vertical

Applications :

-

Contact Shape :

RECTANGULAR

Contact Type :

Tab

Contact Length - Post :

-

Connector Type :

PLUG

Shrouding :

Shrouded - 3 Wall

Current Rating :

2.8 A

Housing Gender :

PLUG

Housing Color :

Black

Tradename :

Pico-EZmate Plus

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Pitch - Mating :

0.039 (1.00mm)

Operating Temperature :

-40°C ~ 105°C

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Features :

Solder Retention

Contact Length - Mating :

-

Product Status :

Active

Maximum Operating Temperature :

+ 105 C

Row Spacing - Mating :

-

Current Rating (Amps) :

Varies by Wire Gauge

Number of Positions Loaded :

All

Base Product Number :

212134

Contact Finish - Mating :

Gold

Type :

SHROUDED

Insulation Color :

Black

Contact Finish - Post :

Gold

Material Flammability Rating :

UL94 V-0

Mated Stacking Heights :

-

Number of Rows :

1 Row
