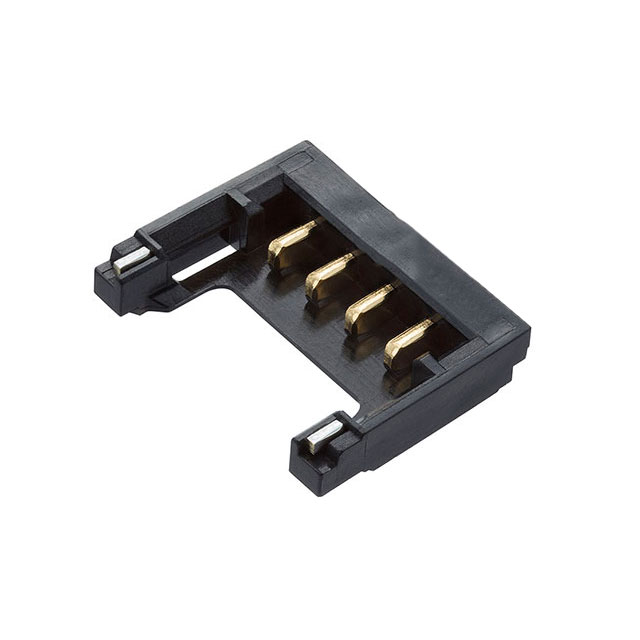

2121340004

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Orientation :

Vertical

Current Rating :

2.8 A

Fastening Type :

Friction Lock

Row Spacing - Mating :

-

Number of Positions Loaded :

All

Pitch - Mating :

0.039 (1.00mm)

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Style :

Board to Cable/Wire

Product :

Headers

Number of Rows :

1 Row

Housing Color :

Black

Housing Material :

Polyamide (PA)

Features :

Solder Retention

Pitch :

1 mm

Termination Style :

Solder

Applications :

-

Tradename :

Pico-EZmate Plus

Minimum Operating Temperature :

- 40 C

Contact Length - Mating :

-

Packaging :

Cut Tape

Mounting Type :

Surface Mount, Right Angle

Contact Length - Post :

-

Base Product Number :

212134

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Contact Shape :

RECTANGULAR

Connector Type :

PLUG

Product Status :

Active

Housing Gender :

PLUG

Series :

212134

Contact Finish - Post :

Gold

Mated Stacking Heights :

-

Contact Finish - Mating :

Gold

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Contact Material :

COPPER ALLOY

Current Rating (Amps) :

Varies by Wire Gauge

RoHS :

Details

Contact Type :

Tab

Contact Finish Thickness - Post :

-

Voltage Rating :

50 VAC/VDC

Shrouding :

Shrouded - 3 Wall

Number of Positions :

4 Position

Ingress Protection :

-

Insulation Height :

0.047 (1.20mm)

Overall Contact Length :

-

Insulation Color :

Black

Maximum Operating Temperature :

+ 105 C

Operating Temperature :

-40°C ~ 105°C

Insulation Material :

Polyamide (PA), Nylon, Glass Filled
