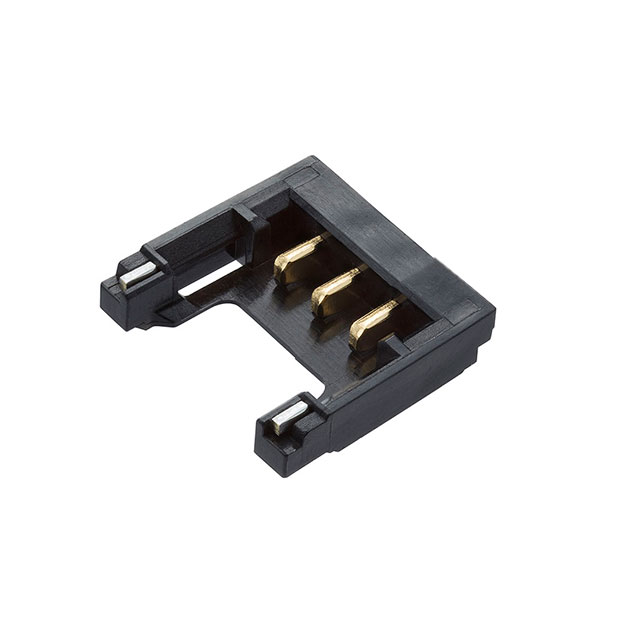

2121340003

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Current Rating :

2.8 A

Minimum Operating Temperature :

- 40 C

Pitch :

1 mm

Product Status :

Active

Ingress Protection :

-

Material Flammability Rating :

UL94 V-0

Housing Color :

Black

Orientation :

Vertical

Contact Finish - Post :

Gold

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

RoHS :

Details

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Housing Gender :

PLUG

Overall Contact Length :

-

Contact Finish - Mating :

Gold

Insulation Color :

Black

Number of Rows :

1 Row

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Series :

212134

Fastening Type :

Friction Lock

Base Product Number :

212134

Contact Material :

COPPER ALLOY

Style :

Board to Cable/Wire

Connector Type :

PLUG

Voltage Rating :

50 VAC/VDC

Packaging :

Cut Tape

Applications :

-

Termination :

Solder

Contact Shape :

RECTANGULAR

Contact Finish Thickness - Post :

-

Insulation Height :

0.047 (1.20mm)

Contact Length - Post :

-

Type :

SHROUDED

Maximum Operating Temperature :

+ 105 C

Number of Positions Loaded :

All

Mounting Type :

Surface Mount, Right Angle

Housing Material :

Polyamide (PA)

Operating Temperature :

-40°C ~ 105°C

Termination Style :

Solder

Contact Plating :

Gold

Shrouding :

Shrouded - 3 Wall

Number of Positions :

3 Position

Product :

Headers

Mounting Style :

SMD/SMT

Mated Stacking Heights :

-

Row Spacing - Mating :

-

Pitch - Mating :

0.039 (1.00mm)

Contact Length - Mating :

-

Contact Type :

Tab

Current Rating (Amps) :

Varies by Wire Gauge

Features :

Solder Retention

Tradename :

Pico-EZmate Plus
