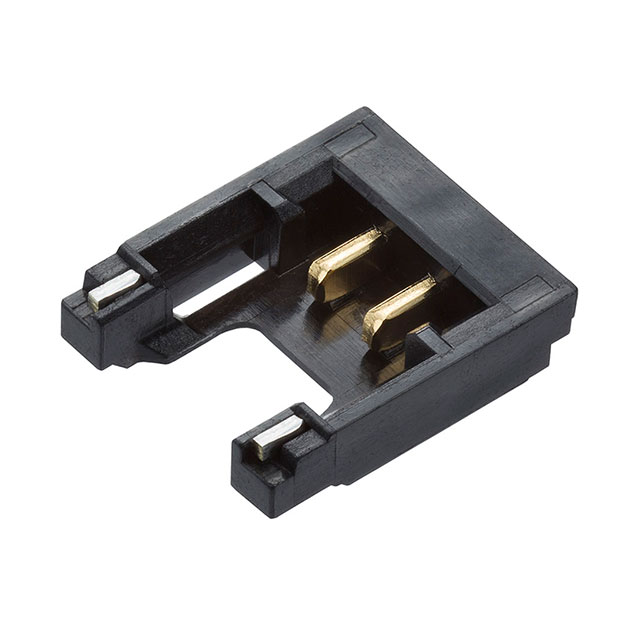

2121340002

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination Style :

Solder

Packaging :

Cut Tape

Tradename :

Pico-EZmate Plus

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mounting Type :

Surface Mount, Right Angle

Housing Color :

Black

Base Product Number :

212134

Housing Gender :

PLUG

Product Status :

Active

Ingress Protection :

-

Mated Stacking Heights :

-

Applications :

-

Minimum Operating Temperature :

- 40 C

RoHS :

Details

Mounting Angle :

Straight

Housing Material :

Polyamide (PA)

Current Rating :

2.8 A

Contact Finish - Mating :

Gold

Insulation Height :

0.047 (1.20mm)

Number of Rows :

1 Row

Voltage Rating :

50 VAC/DC

Contact Type :

Tab

Features :

Solder Retention

Contact Finish - Post :

Gold

Operating Temperature :

-40°C ~ 105°C

Product :

Headers

Insulation Color :

Black

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Orientation :

Vertical

Pitch - Mating :

0.039 (1.00mm)

Contact Finish Thickness - Post :

-

Fastening Type :

Friction Lock

Maximum Operating Temperature :

+ 105 C

Termination :

Solder

Overall Contact Length :

-

Number of Positions Loaded :

All

Contact Shape :

RECTANGULAR

Style :

Board to Cable/Wire

Series :

212134

Contact Length - Post :

-

Contact Plating :

Gold

Connector Type :

PLUG

Contact Material :

COPPER ALLOY

Material Flammability Rating :

UL94 V-0

Pitch :

1 mm

Number of Positions :

2 Position

Row Spacing - Mating :

-

Contact Length - Mating :

-

Type :

PCB Header

Current Rating (Amps) :

Varies by Wire Gauge

Shrouding :

Shrouded - 3 Wall

Contact Finish Thickness - Mating :

3.94µin (0.100µm)
